Features:

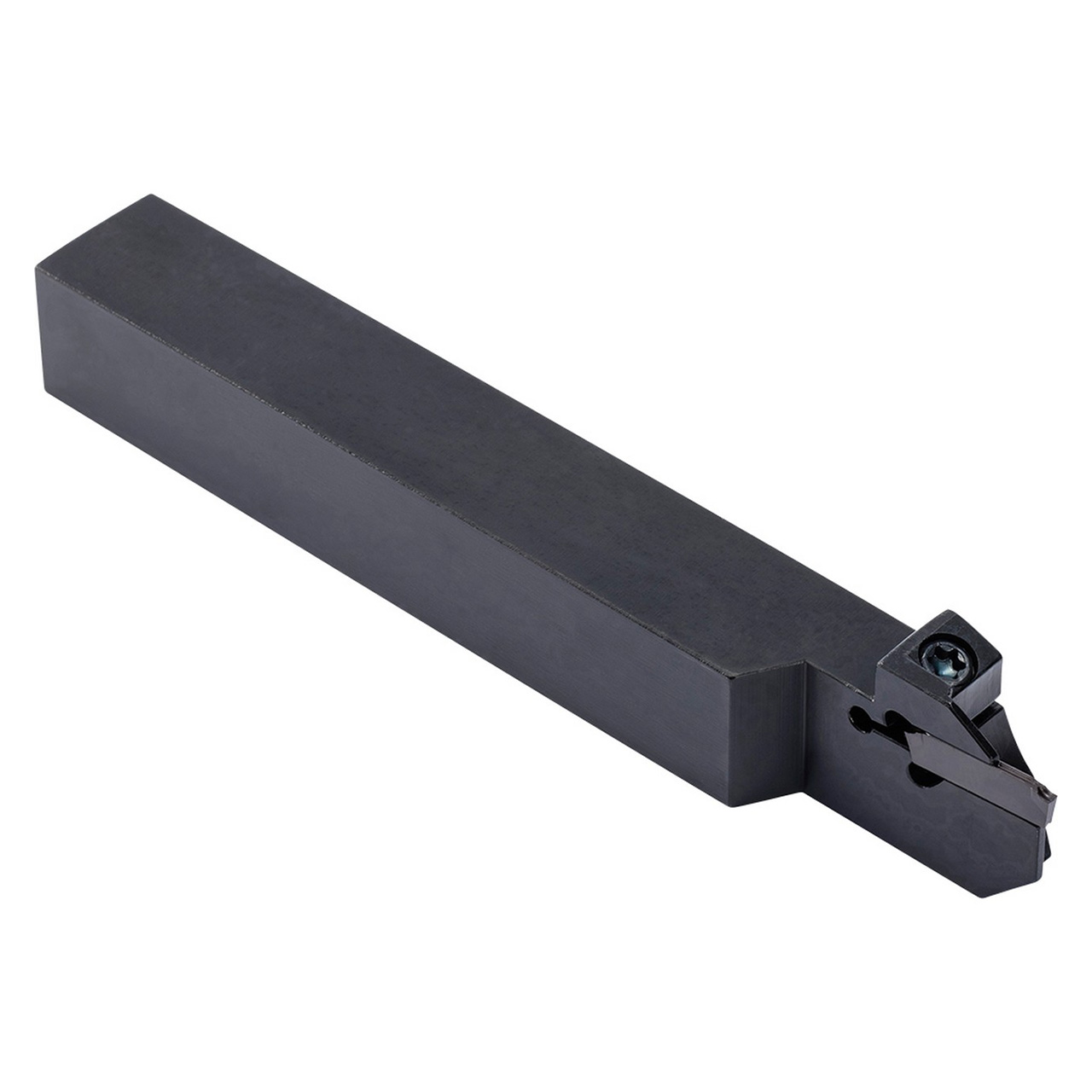

- Left-Hand KGDS toolholder
- Application : KGDS
- Clamp screw insert holding design
- Compatible with Left-Hand insert reliant inserts
Product Specifications
| EDP Number | THT03700 |
| Maximum Depth of Cut (mm) | 1.00mm |
| Shank Width (mm) | 16.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 0.9449" |
| Maximum Cut-Off Diameter (mm) | 24.00mm |
| Cutting Width (Decimal Inch) | 0.0787 - 0.1181" |
| Cutting Width (mm) | 2.00 - 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Shank Height (Decimal Inch) | 0.6299" |
| Shank Height (mm) | 16.00mm |
| Application | Cut-Off | Sub-Spindle |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Maximum Workpiece Diameter (Decimal Inch):
0.9449"
Maximum Workpiece Diameter (mm):
24.00mm
Series:
KGD;Toolholder Style=KGDS"
Shank Width/Diameter (Decimal Inch):
0.6299"
Shank Width/Diameter (mm):
16.00mm
Shank Height (Decimal Inch):
0.6299"
Shank Height (mm):
16.00mm
