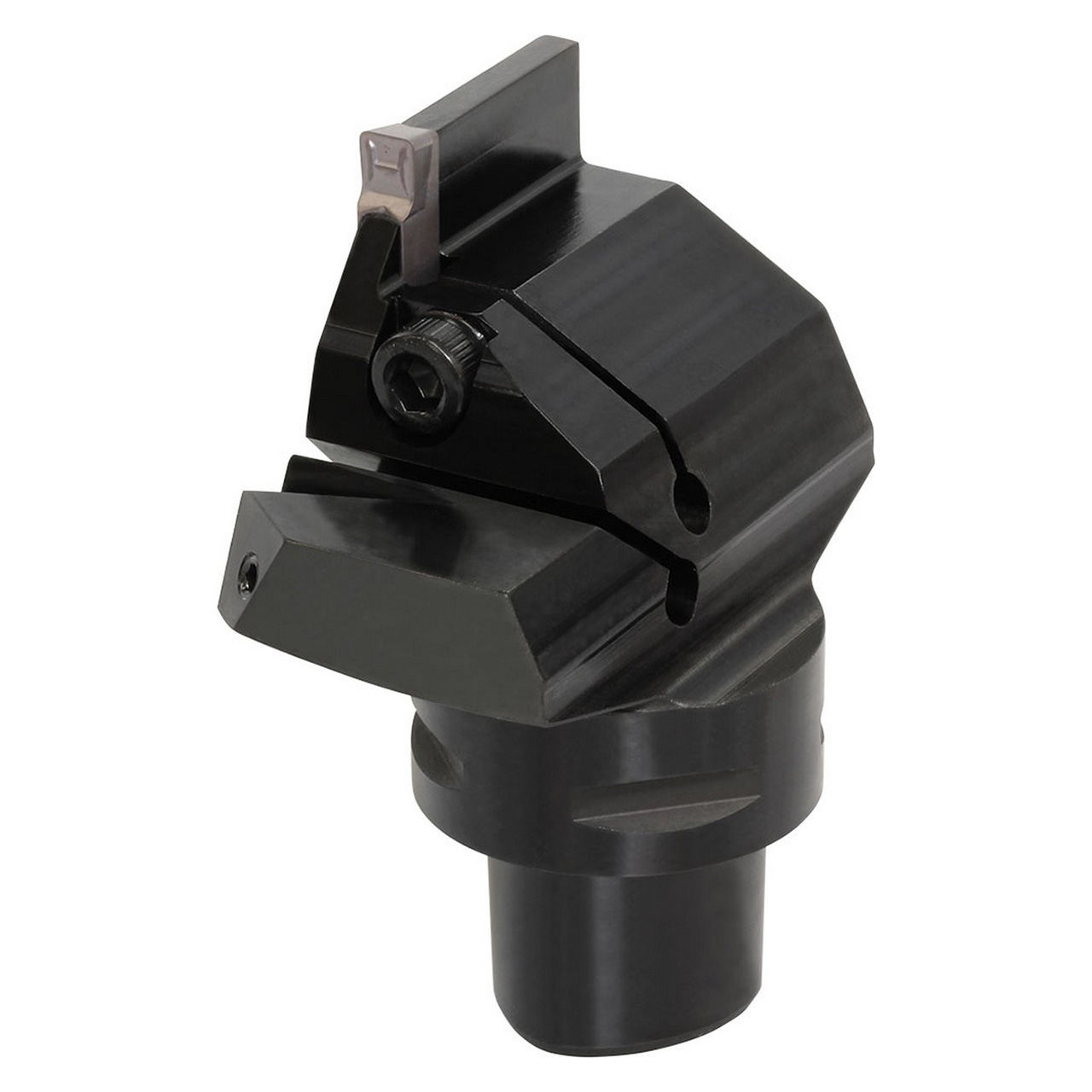

Kyocera Precision Tools THT05440 | KPC5KGDR350602T10 0.3937" Max Depth Of Cut x 0.0787 "- 0.1181" Cutting Width Steel Polygon Shank Indexable Grooving Toolholder

$840.70 $697.78
(You save $142.92)
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Minimum Groove Width (Decimal Inch):
0.0787"
Minimum Groove Width (mm):
2.00mm
Maximum Groove Width (Decimal Inch):
0.1181"
Maximum Groove Width (mm):
3.00mm
Toolholder Style:
KPC
Series:
KPC;Through Coolant=Yes"
interval quantity:
1
SKU:
23234962
UPC:
Weight:
1.73 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Polygon taper design and dual contact between the taper and the flange face for high rigidity
  • High precision with locational accuracy +/-2mm
  • Distributes cutting forces evenly between 3 faces for enhanced rigidity and center accuracy
  • Compatible with GDM, GDG inserts

Product Specifications
EDP NumberTHT05440
Maximum Depth of Cut (mm)2.50mm
Max Depth of Cut (Decimal Inch)0.3937"
Max Depth of Cut (mm)10.00mm
Cutting Width (Decimal Inch)0.0787 - 0.1181"
Cutting Width (mm)2.00 - 3.00mm
Cutting Width Minimum (Decimal Inch)0.0787"
Cutting Width Minimum (mm)2.00mm
Cutting Width Maximum (Decimal Inch)0.1181"
Cutting Width Maximum (mm)3.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.9685"
Contact Surface Diameter Machine Side (mm)50.00mm
ApplicationCut-Off | External Grooving
Coolant Through (Yes/No)Yes
Grooving TypeExternal Grooving
HandRight Hand
Insert Holding MethodTop Clamp
MaterialSteel
