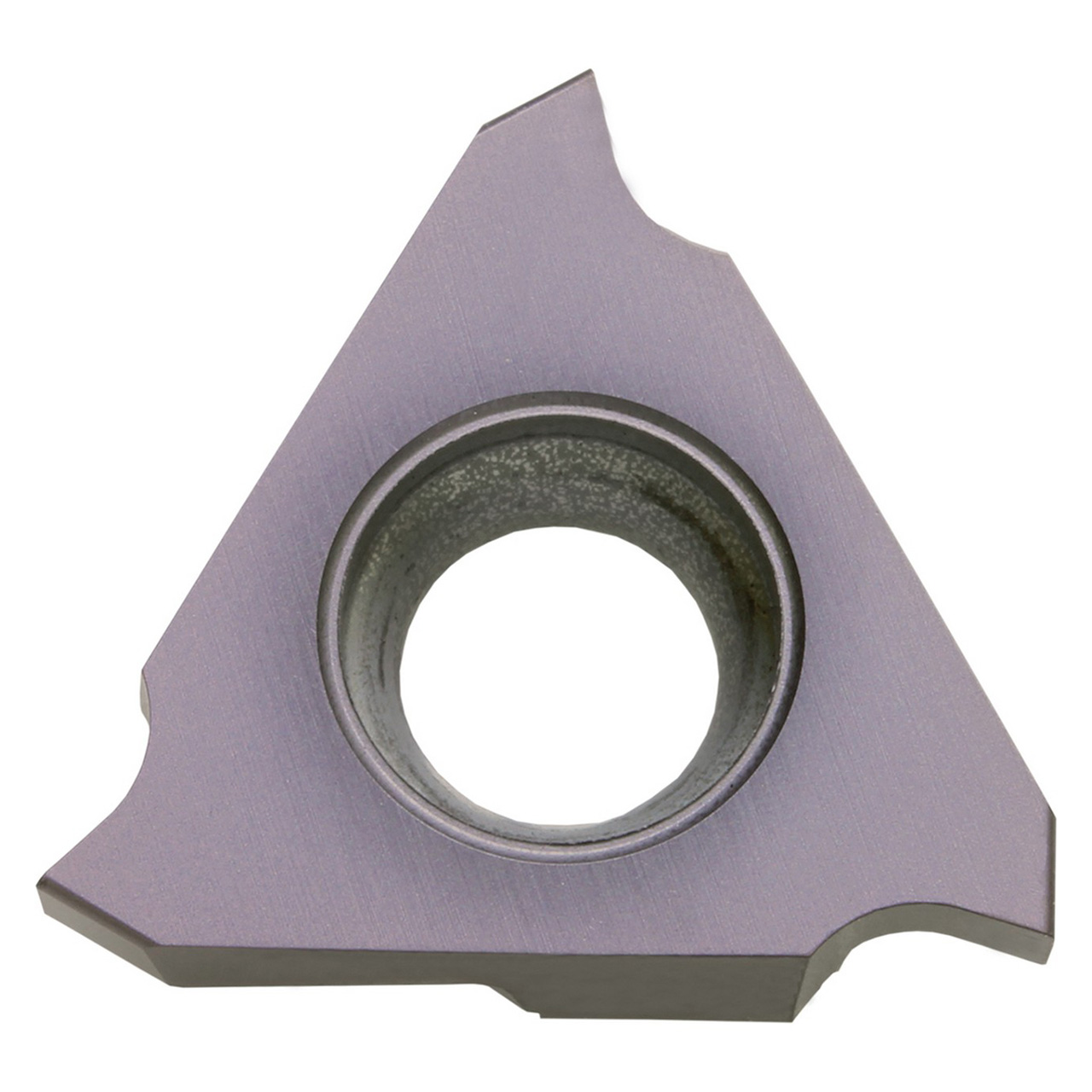

Kyocera Precision Tools TJB89008 | GBA32R062N PV7040 0.0618" Cutting Width x 1/8" Thickness PVD Coated Cermet Grooving Insert

$18.46
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
32
Material:
Cermet;Cutting Width (Decimal Inch)=0.0618"""
Cutting Width (mm):
1.57mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PV7040
Finish/Coating:
PVD
SKU:
23235194
Weight:
0.25 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

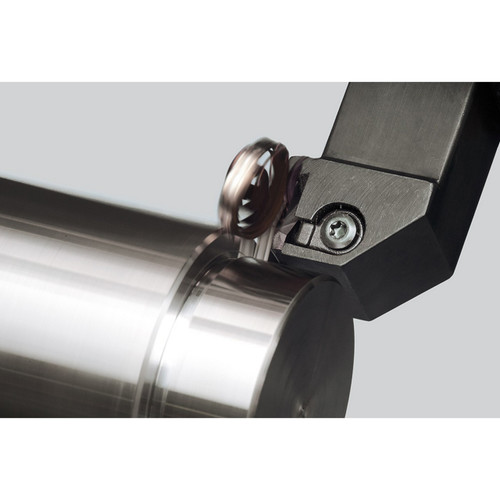

  • Insert for external grooving
  • 3 Cutting edges
  • MEGACOAT coating technology on super micro-grain cermet
  • Application: Grooving of steel

Product Specifications
Tool NumberTJB89008
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0618"
Cutting Width (mm)1.57mm
Cutting Width Minimum (Decimal Inch)0.0618"
Cutting Width Minimum (mm)1.57mm
Cutting Width Maximum (Decimal Inch)0.0618"
Cutting Width Maximum (mm)1.57mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
ChipbreakerN
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert Holding MethodScrew or Clamp
Insert GradePV7040
Insert Size32
MaterialCermet
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
