Features:

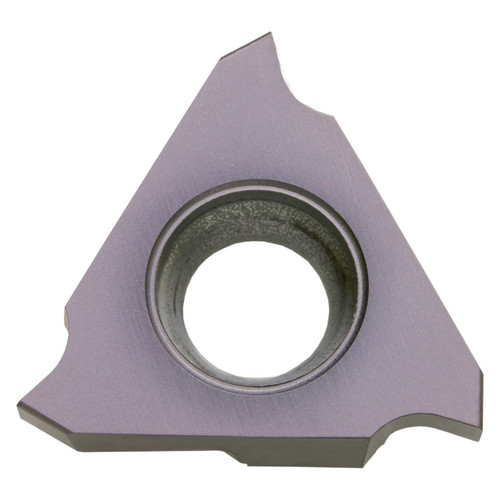

| Tool Number | TJB89014 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0311" |
| Cutting Width (mm) | 0.79mm |
| Cutting Width Minimum (Decimal Inch) | 0.0311" |
| Cutting Width Minimum (mm) | 0.79mm |
| Cutting Width Maximum (Decimal Inch) | 0.0311" |
| Cutting Width Maximum (mm) | 0.79mm |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |

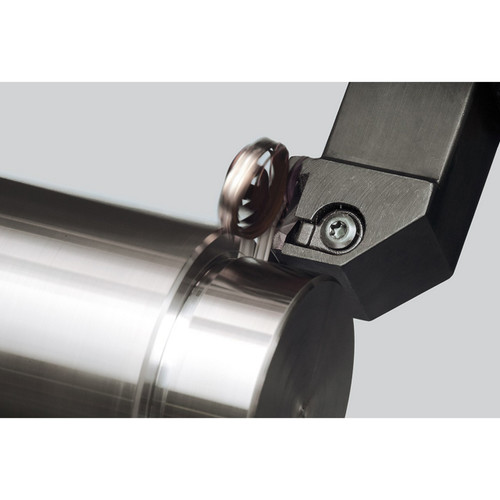

| Application | External Grooving |
| Chipbreaker | N |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PV7040 |
| Insert Size | 43 |
| Material | Cermet |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
