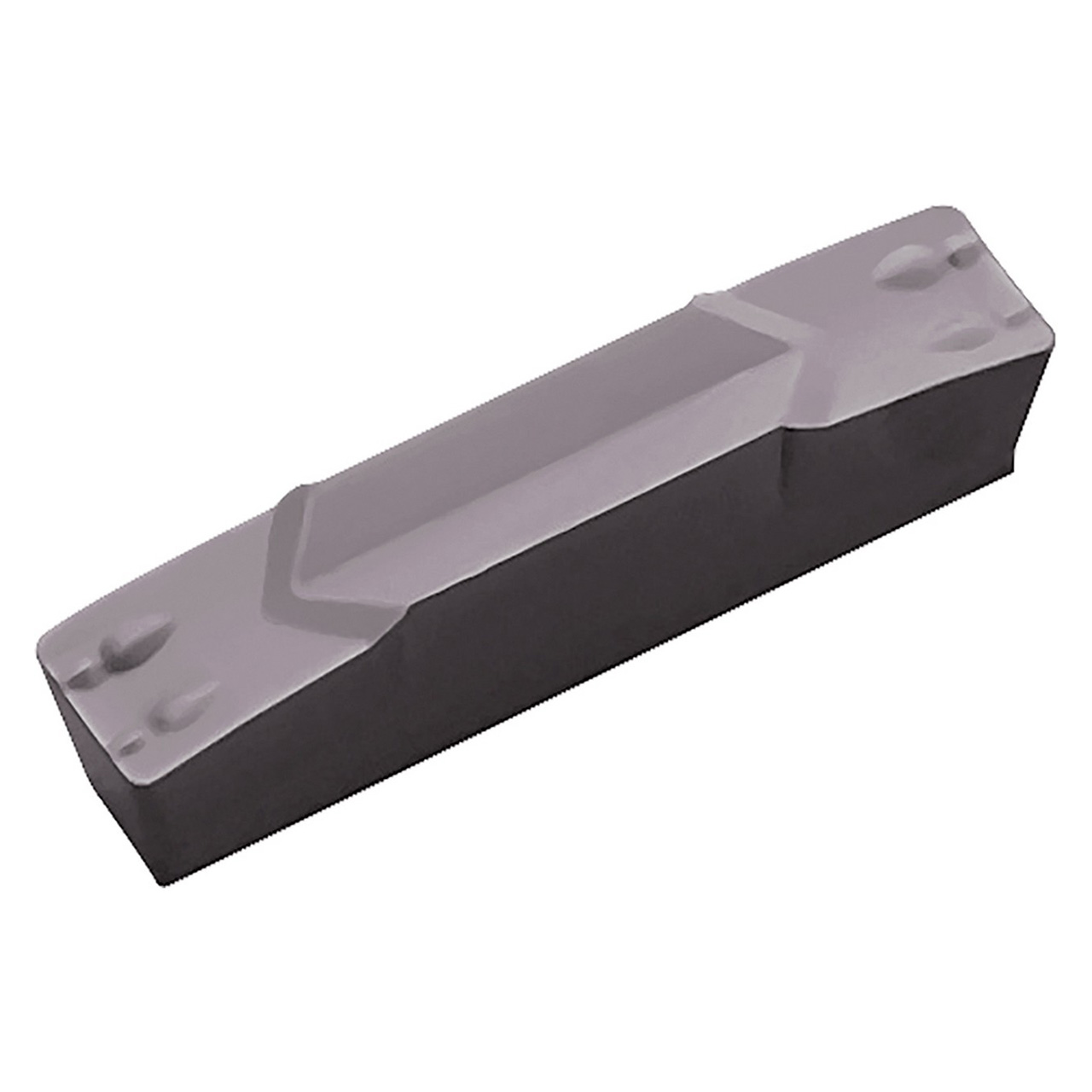

Features:
- Insert for grooving, traversing
- Chip control oriented/M-class
- 2 Cutting edges
- Smooth fine surface PVD coated hard carbide with plastic deformation resistance
- Application: Suitable for turning of gray and nodular cast iron
Product Specifications
| Tool Number | TJF12800 |
| Max Depth of Cut (Decimal Inch) | 0.6693" |
| Max Depth of Cut (mm) | 17.00mm |
| Cutting Width (Decimal Inch) | 0.0945" |
| Cutting Width (mm) | 2.40mm |
| Cutting Width Minimum (Decimal Inch) | 0.0945" |
| Cutting Width Minimum (mm) | 2.40mm |
| Cutting Width Maximum (Decimal Inch) | 0.0945" |
| Cutting Width Maximum (mm) | 2.40mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | External Grooving | Traversing |
| Chipbreaker | MW |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR905 |
| Insert Size | 2420020 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron (K) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMM
Insert Size:
2420020
Material:
Carbide;Cutting Width (Decimal Inch)=0.0945"""
Cutting Width (mm):
2.40mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
PR905
Finish/Coating:
PVD
