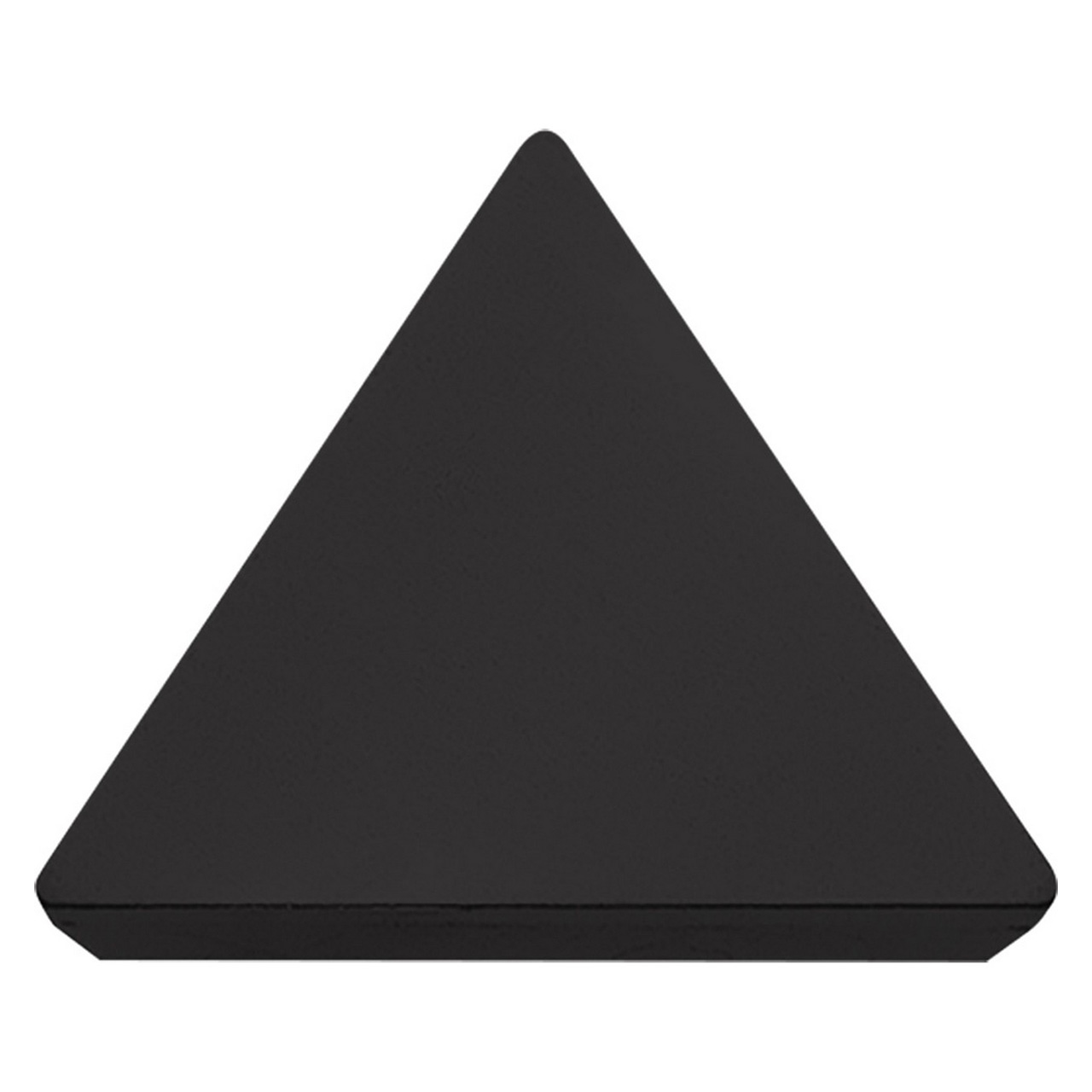

Features:
- Insert for external turning, facing, chamfering, boring
- Without chipbreaker with 3 cutting edges
- Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
- Application: First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
Product Specifications
| EDP Number | TJH06620 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Coating Process | CVD |
| Cutting Range | Medium |
| Hand | Neutral |
| Insert Grade | CA4515 |
| Insert Holding Method | Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 321 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Gray Cast Iron (K)|(K) Nodular Cast Iron |
| Usage Classification | Heavy Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TPM
Insert Size:
321
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
CA4515
