Features:
| EDP Number | TJV00486 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |

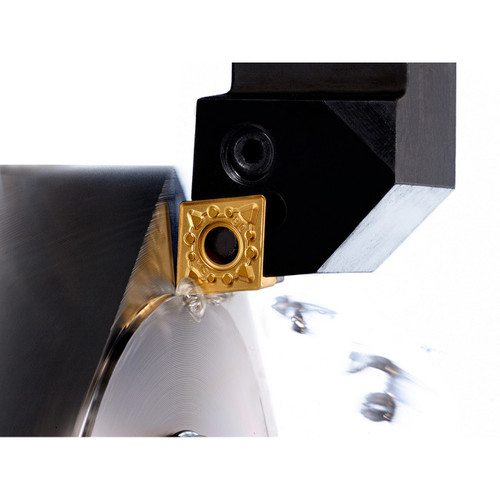

| Application | Boring | External Turning | Facing | Internal Facing |
| Chipbreaker | GK |
| Coating Process | CVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | CA6525 |
| Insert Holding Method | Screw or Clamp |

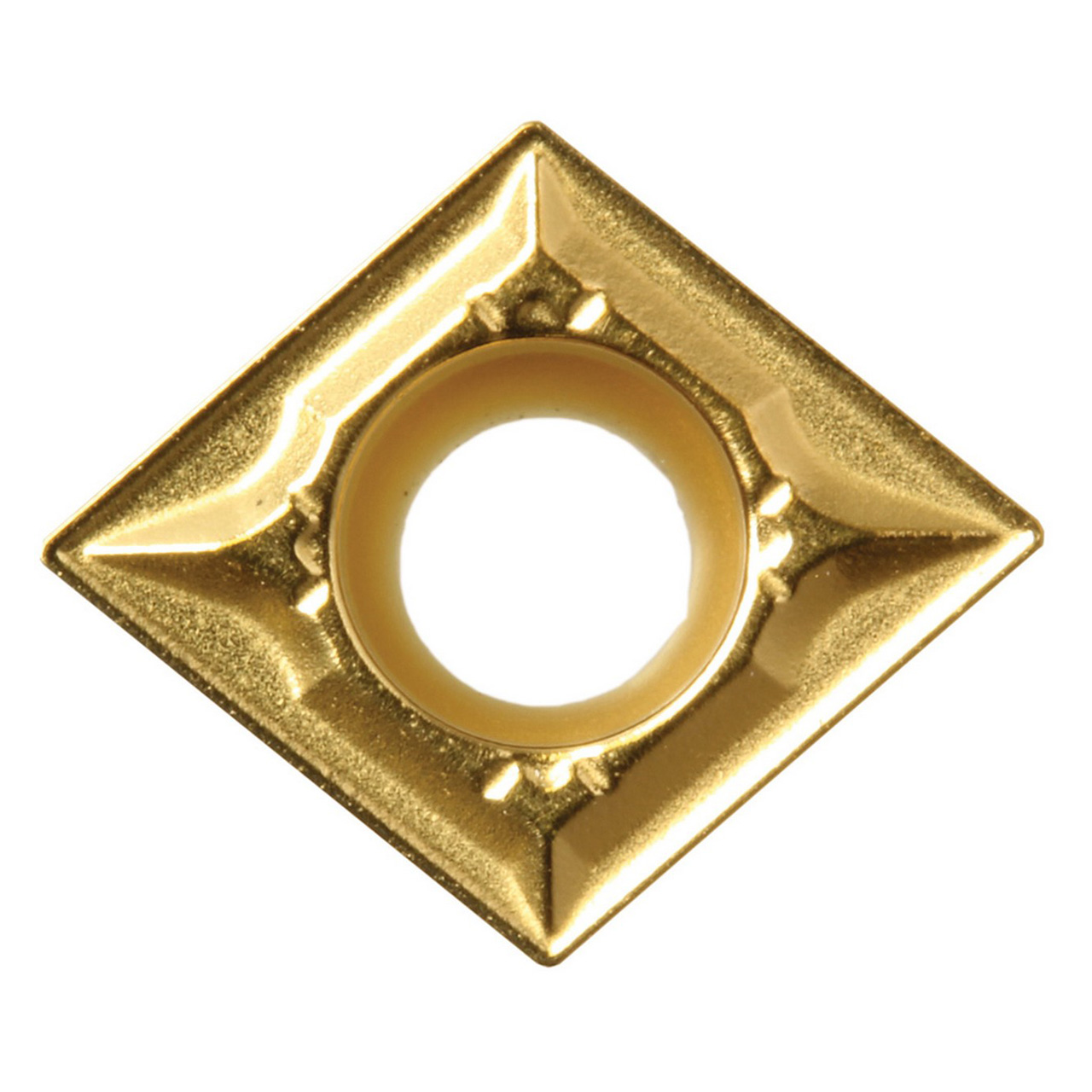

| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 3251 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Light Interruption |
