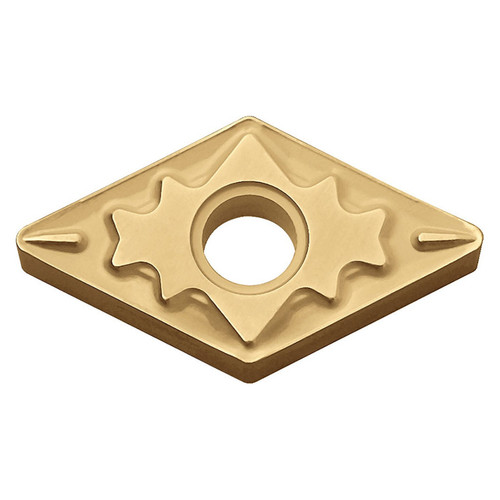

Features:
| EDP Number | TJV02120 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | Copying | External Turning |
| Chipbreaker | HQ |
| Coating Process | CVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | CA6525 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 431 |
| Material | Carbide |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Light Interruption |
