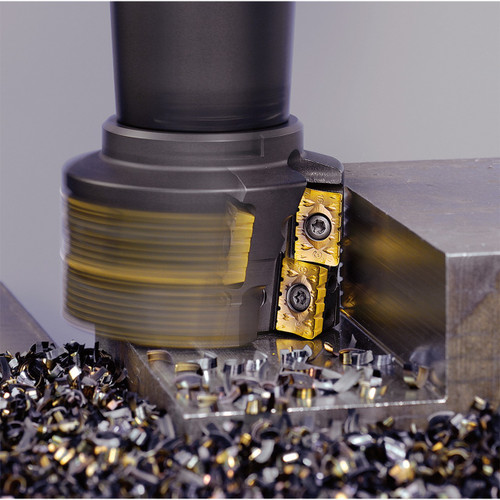

- Insert for heavy milling, facing, shouldering, slotting
- Honed edge/3 notch with 2 cutting edges
- Superior wear and oxidation resistant MEGACOAT on special carbide substrate for cast iron
- Application: Highly efficient stable milling and drilling of gray and nodular cast iron and titanium alloys
Product Specifications
| EDP Number | TKA00036 |
| Insert Included Angle (Degree) | 85 Degree |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 1/4" |
| [S] Thickness (mm) | 6.35mm |
| Application | Facing | Heavy Milling | Shouldering | Slotting |
| Chipbreaker | ER-NB3 |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
250608
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
