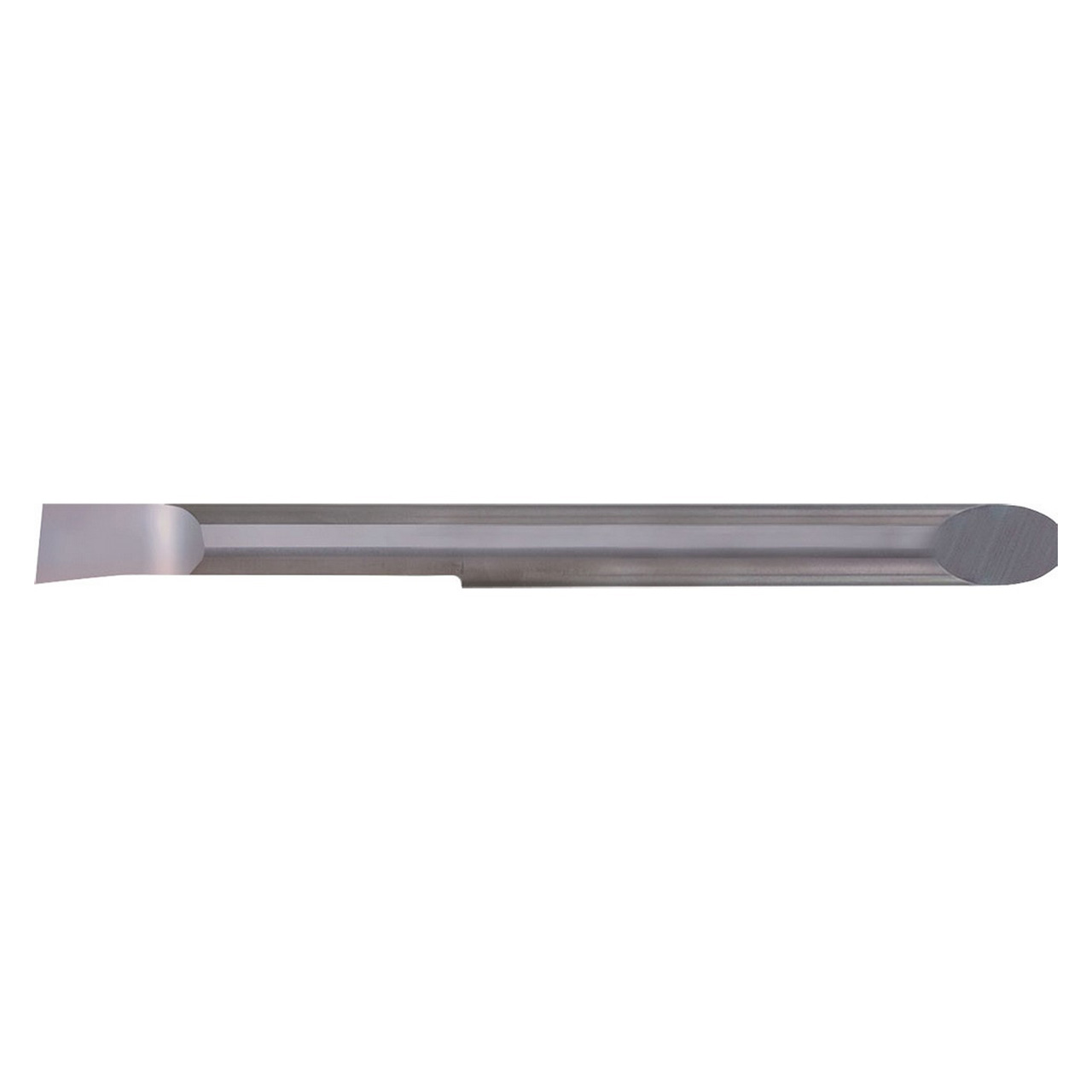

Features:
- Adjustable overhang length (EZ Adjust structure)
- Minimized deviation of the cutting diameter
- Various EZ bar sizes and styles for a wide range of small internal machining applications
- Without chipbreaker for non-ferrous machining applications
- Compatible with EZH060 style sleeves
Product Specifications
| EDP Number | TKB03086 |
| Shank Width (Decimal Inch) | 0.7500" |
| Connection Diameter (Decimal Inch) | 0.2362" |
| Connection Diameter (mm) | 6.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.2559" |
| Minimum Bore Diameter (mm) | 6.50mm |
| Shank Height (Decimal Inch) | 0.2284" |
| Shank Height (mm) | 5.80mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 1.1811" |
| Usable Length (mm) | 30.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | PR1225 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Steel (P) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.2559"""
Minimum Bore Diameter (mm):
6.50mm
Maximum Bore Depth (Decimal Inch):
1.1811"
Maximum Bore Depth (mm):
30.00mm
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
