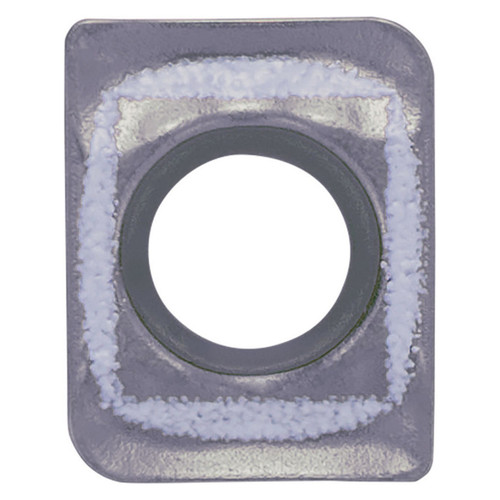

Features:
- Outboard insert for drilling
- General purpose chipbreaker for stable deep-hole drilling
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| Tool Number | TKB05630 |
| Insert Length (Decimal Inch) | 0.2181" |
| Insert Length (mm) | 5.54mm |
| Corner Radius (Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Thickness (Inch) | 5/64" |
| Thickness (mm) | 1.98mm |
| Application | Drilling |
| Chipbreaker | GM-E |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1225 |
| Insert Shape | Irregular |
| Insert Size | 030203 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) | Tool Steel (P) | Stainless Steel (M) | Cast Iron (K) |
| Usage Classification |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
LCMT
Insert Size:
030203
Material:
Carbide;Manufacturer's Grade=PR1225"
Thickness (Decimal Inch):
0.0800"
Thickness (mm):
1.98mm
Corner Radius (Decimal Inch):
0.0120"
Corner Radius (mm):
0.30mm
