Features:
| EDP Number | TKB40002 |
| Shank Width (Decimal Inch) | 0.7874" |
| Connection Diameter (Decimal Inch) | 0.1772" |
| Connection Diameter (mm) | 4.50mm |
| Minimum Bore Diameter (Decimal Inch) | 0.1772" |
| Minimum Bore Diameter (mm) | 4.50mm |
| Shank Height (Decimal Inch) | 0.1614" |
| Shank Height (mm) | 4.10mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 0.8858" |
| Usable Length (mm) | 22.50mm |
| Corner Radius (Decimal Inch) | 0.003" |
| Corner Radius (mm) | 0.08mm |

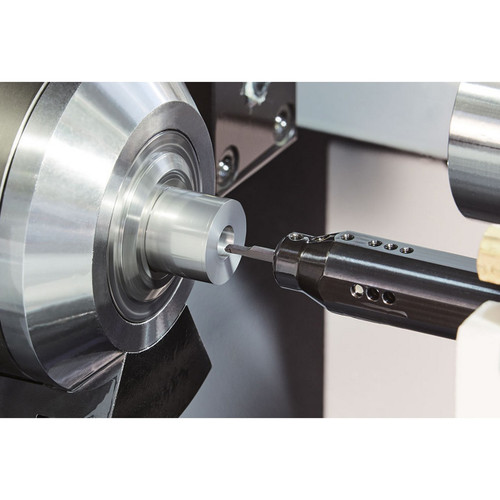

| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Left Hand |
| Insert Grade | PR1225 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Steel (P) |
