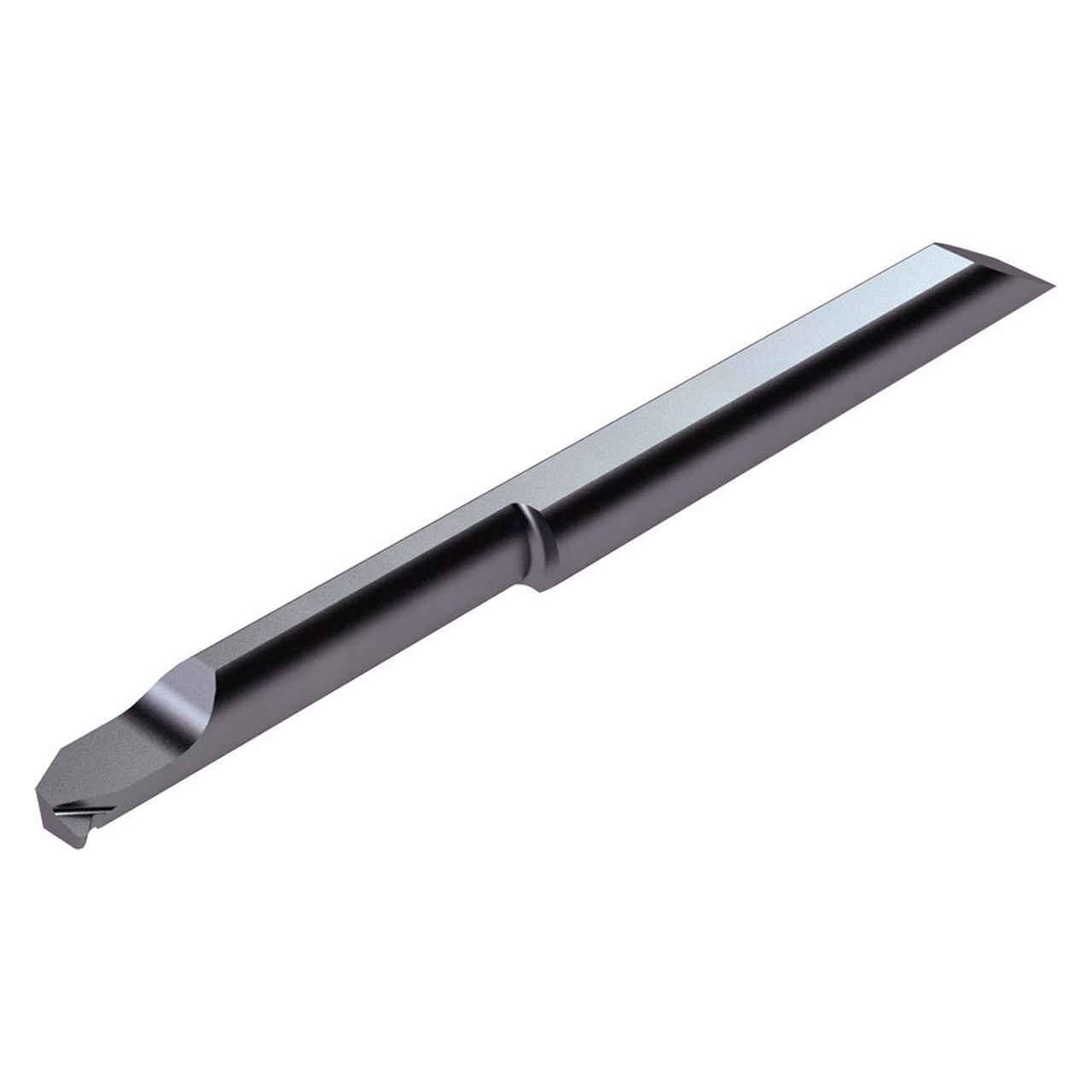

Kyocera Precision Tools TKB40029 | EZBPR040040015 PR1225 0.158" Diameter x 0.787" Usable Length PVD Coated Micro Boring Bar

$88.26 $51.19
(You save $37.07)
Brand:
Kyocera Precision Tools
Toolholder Style:
EZBP
Minimum Bore Diameter (Decimal Inch):
0.1575"
Minimum Bore Diameter (mm):
4.00mm
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Hand of Holder:
Right Hand
interval quantity:
1
SKU:
23237675
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Adjustable overhang length (EZ Adjust structure)
  • Minimized deviation of the cutting diameter
  • Various EZ bar sizes and styles for a wide range of small internal machining applications

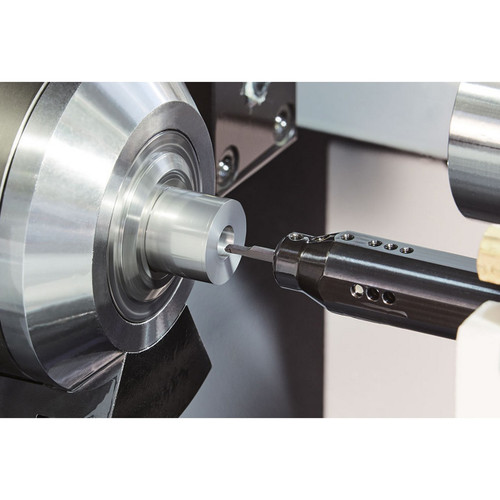

  • For micro internal profiling applications
  • Compatible with EZH040 style sleeves

Product Specifications
EDP NumberTKB40029
Maximum Depth of Cut (Decimal Inch)0.0236"
Shank Width (Decimal Inch)0.9843"
Connection Diameter (Decimal Inch)0.1575"
Connection Diameter (mm)4.00mm
Minimum Bore Diameter (Decimal Inch)0.1575"
Minimum Bore Diameter (mm)4.00mm
Shank Height (Decimal Inch)0.1358"
Shank Height (mm)3.45mm
Tool Entering Angle ( Degree)98 Degree
Usable Length (Decimal Inch)0.7874"
Usable Length (mm)20.00mm
Corner Radius (Decimal Inch)0.006"
Corner Radius (mm)0.15mm
ApplicationMicro Internal Profiling
Coating ProcessPVD
HandRight Hand
Insert GradePR1225
Insert Holding MethodScrew
MaterialCarbide
Primary Workpiece MaterialSteel (P)
