Kyocera Precision Tools TKC05468 | SPMT1806EDERV PR1230 0.709" Circle Diameter x 1/4" Thickness PVD Coated Carbide Milling Insert

$46.69 $27.08
(You save $19.61)
Brand:
Kyocera Precision Tools
Insert Size:
1806
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.7100"
Inscribed Circle (mm):
18.00mm
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
interval quantity:
10
SKU:
23237716
UPC:
Weight:
0.48 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

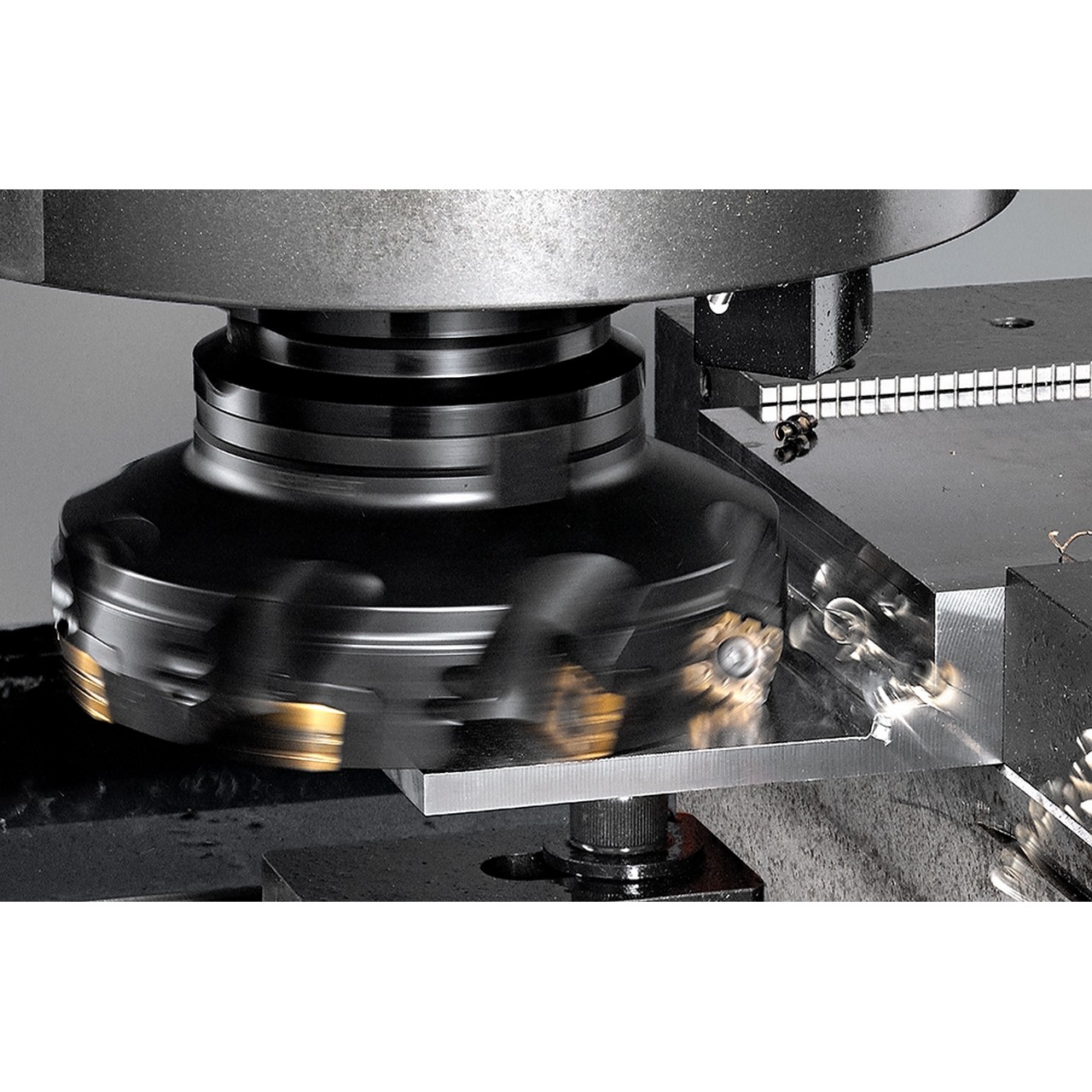

  • Insert for heavy milling, facing, shouldering, slotting
  • Honed edge with 4 cutting edges
  • Superior wear and oxidation resistant MEGACOAT on a special tough carbide substrate
  • Application: Stable and high feed rate milling and drilling of steel

Product Specifications
EDP NumberTKC05468
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)0.709"
[IC] Inscribed Circle (mm)18.00mm
[RE] Corner Radius (Inch)3/64"
[RE] Corner Radius (mm)1.20mm
[S] Thickness (Inch)1/4"
[S] Thickness (mm)6.35mm
ApplicationFacing | Heavy Milling | Shouldering | Slotting
ChipbreakerEDER-V
Coating ProcessPVD
