Features:

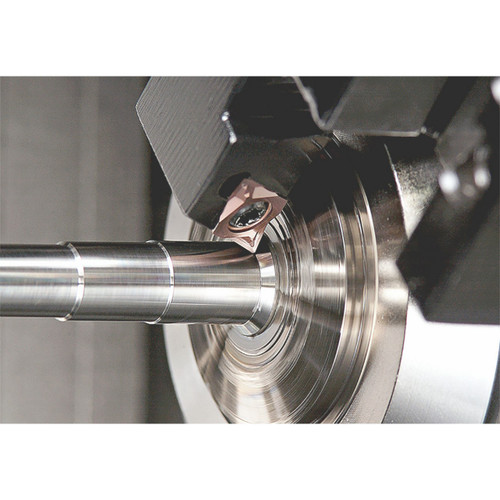

- Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
- Sharp edge/precision/super fine/minus tolerance corner radius with 2 cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| EDP Number | TKE07947 |
| Inscribed Circle (Inch) | 3/16" |
| Inscribed Circle (mm) | 4.76mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
| Chipbreaker | USF |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Grade | PR1225 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 35 Degree Diamond |
| Insert Included Angle ( Degree) | 35 Degree |
| Insert Size | 151505 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
VPET
Insert Size:
151505
Material:
Carbide;Inscribed Circle (Inch)=3/16"""
Inscribed Circle (Decimal Inch):
0.1874"
Inscribed Circle (mm):
4.76mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
PR1225
