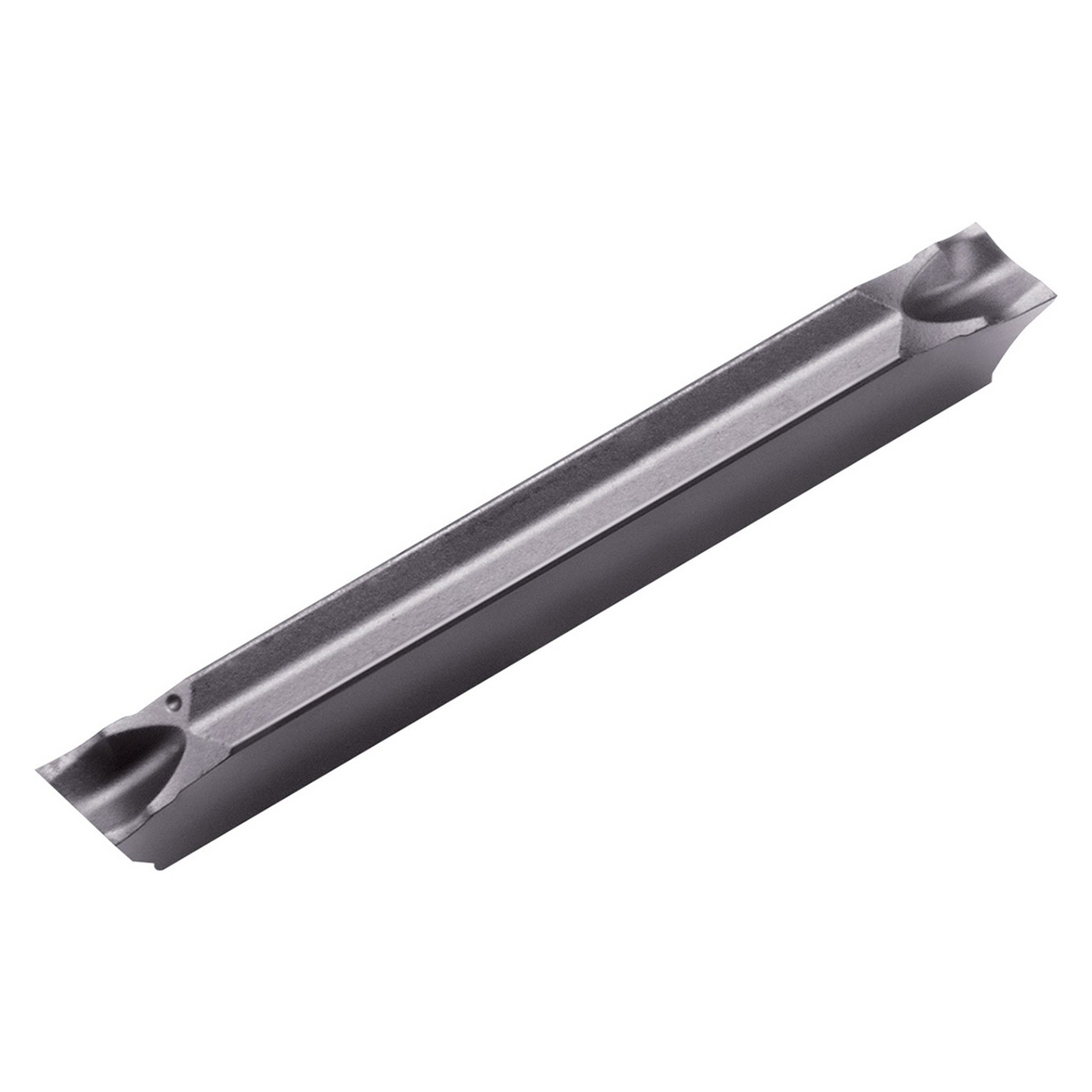

Kyocera Precision Tools TKE10422 | GDM1516R003PF15D PR1225 0.059" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert

Kyocera Precision Tools TKE10422 | GDM1516R003PF15D PR1225 0.059" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert

Name: Kyocera Precision Tools TKE10422 | GDM1516R003PF15D PR1225 0.059" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert
Brand: Kyocera Precision Tools
SKU: 23238140
Availability: InStock

SKU: 23238140 Weight: 0.07 LBS Minimum Purchase: 10 unit

UPC:

$37.02 $21.47

(You save $15.55)

Total Price: $21.47

Quantity:

Shipping: Calculated at Checkout

About This Item

Features:

Insert for Cut-Off for Small parts machining
15 Degree lead angle / Low feed / 2-edge
2 Cutting edges
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications

Tool Number	TKE10422
Cutting Width (Decimal Inch)	0.0591"
Cutting Width (mm)	1.50mm
Cutting Width Minimum (Decimal Inch)	0.0591"
Cutting Width Minimum (mm)	1.50mm
Cutting Width Maximum (Decimal Inch)	0.0591"
Cutting Width Maximum (mm)	1.50mm
Insert Length (Decimal Inch)	0.6299"
Insert Length (mm)	16.00mm
Corner Radius (Inch)	0.001"
Corner Radius (mm)	0.03mm
Thickness (Inch)	0.146"
Thickness (mm)	3.70mm
Application	Cut-Off \| Small Parts Machining
Chipbreaker	PF
Coating Process	PVD
Cutting Range	Medium Roughing
Hand	Right Hand
Insert Holding Method	Clamp
Insert Grade	PR1225
Insert Size	1516
Material	Carbide
Number of Cutting Edges	2
Primary Workpiece Material	Steel (P)
Usage Classification	Light Interruption
