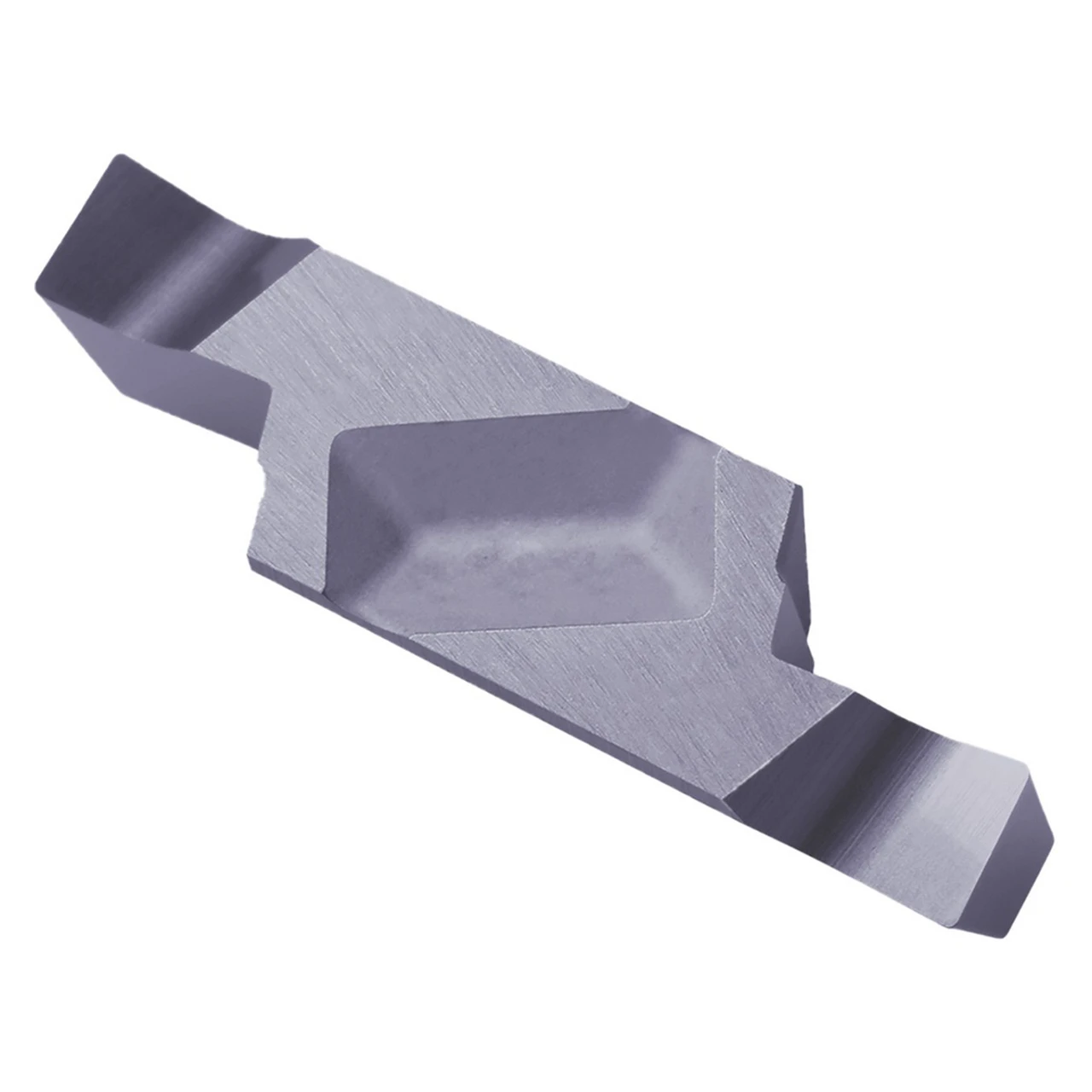

Features:
- Insert for face grooving
- 2 Cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| Tool Number | TKE15859 |
| Max Depth of Cut (Decimal Inch) | 0.3268" |
| Max Depth of Cut (mm) | 8.30mm |
| Cutting Width (Decimal Inch) | 0.2362" |
| Cutting Width (mm) | 6.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.2362" |
| Cutting Width Minimum (mm) | 6.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.2362" |
| Cutting Width Maximum (mm) | 6.00mm |
| Insert Length (Decimal Inch) | 1.0630" |
| Insert Length (mm) | 27.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.276" |
| Thickness (mm) | 7.00mm |
| Application | Face Grooving |
| Chipbreaker | C |
| Coating Process | PVD |
| Coolant Through (Yes/No) | PVD |
| Cutting Range | Medium Roughing |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR1225 |
| Insert Size | 600040 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GVF
Insert Size:
600040
Material:
Carbide;Cutting Width (Decimal Inch)=0.2362"""
Cutting Width (mm):
6.00mm
Maximum Depth of Cut (Decimal Inch):
0.3268"
Maximum Depth of Cut (mm):
8.30mm
Manufacturer's Grade:
PR1225
Finish/Coating:
PVD
