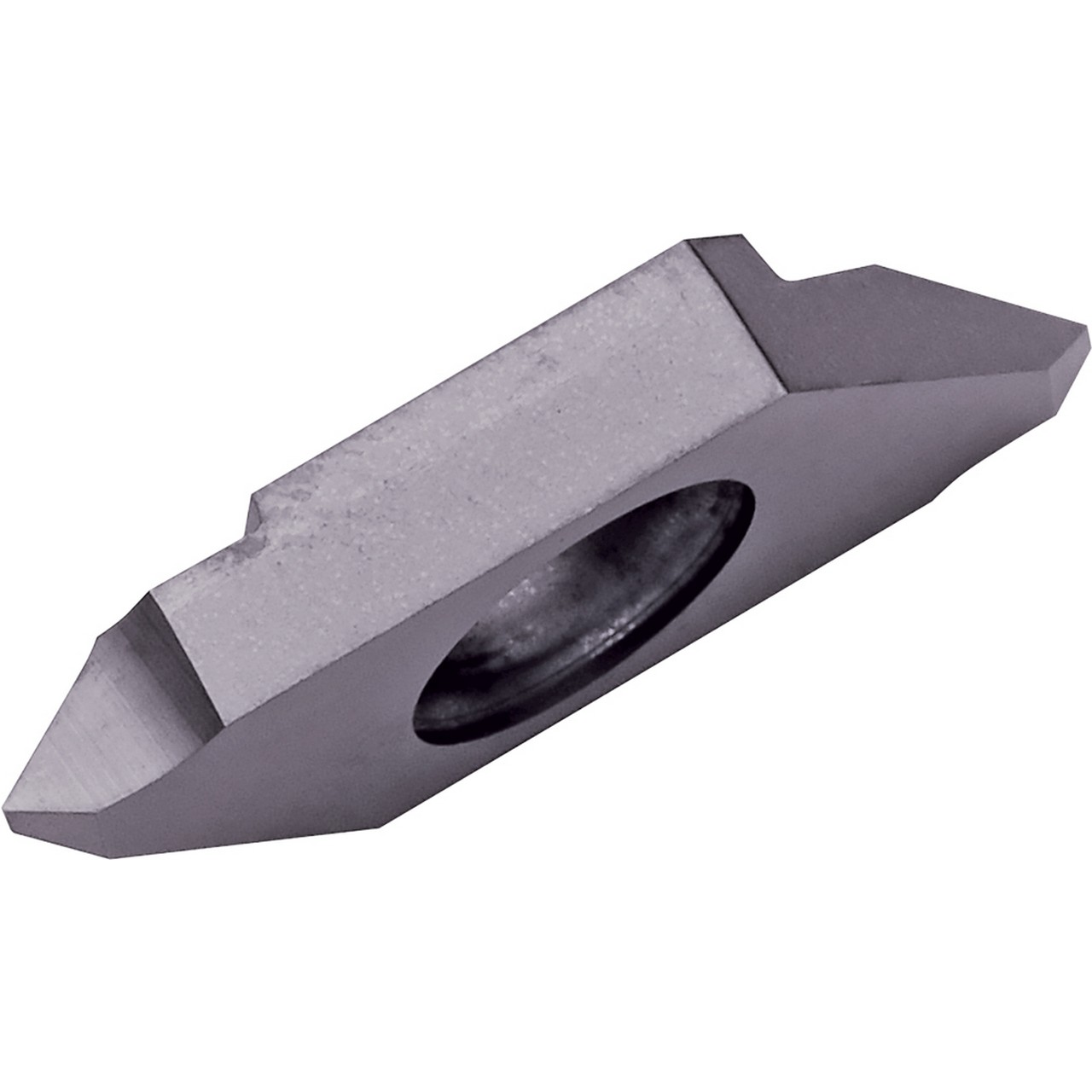

Kyocera Precision Tools TKE16568 | TKFT12RA60005 PR1225 0.0984" Cutting Width x 0.343" Thickness PVD Coated Carbide Threading Insert

$52.95 $30.71
(You save $22.24)
Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
PR1225
External Pitch/TPI (Inch):
1/64 - 3/64 "
External Pitch/TPI (Decimal Inch):
0.0200 - 0.0500"
External Pitch/TPI (mm):
M: 0.50-1.25mm
Finish/Coating:
PVD;Material=Carbide
SKU:
23238494
UPC:
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 2 cutting edges
  • 60 Degree partial profile for metric (M), unified (UN) threads
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
EDP NumberTKE16568
Cutting Width (Decimal Inch)0.0984"
Cutting Width (mm)2.50mm
Cutting Width Minimum (Decimal Inch)0.0984"
Cutting Width Minimum (mm)2.50mm
Cutting Width Maximum (Decimal Inch)0.0984"
Cutting Width Maximum (mm)2.50mm
[RE] Corner Radius (Inch)0.002"
[RE] Corner Radius (mm)0.05mm
[S] Thickness (Inch)0.343"
[S] Thickness (mm)8.70mm
ApplicationExternal Threading
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
PR1225
External Pitch/TPI (Inch):
1/64 - 3/64 "
External Pitch/TPI (Decimal Inch):
0.0200 - 0.0500"
External Pitch/TPI (mm):
M: 0.50-1.25mm
Finish/Coating:
PVD;Material=Carbide
