Features:

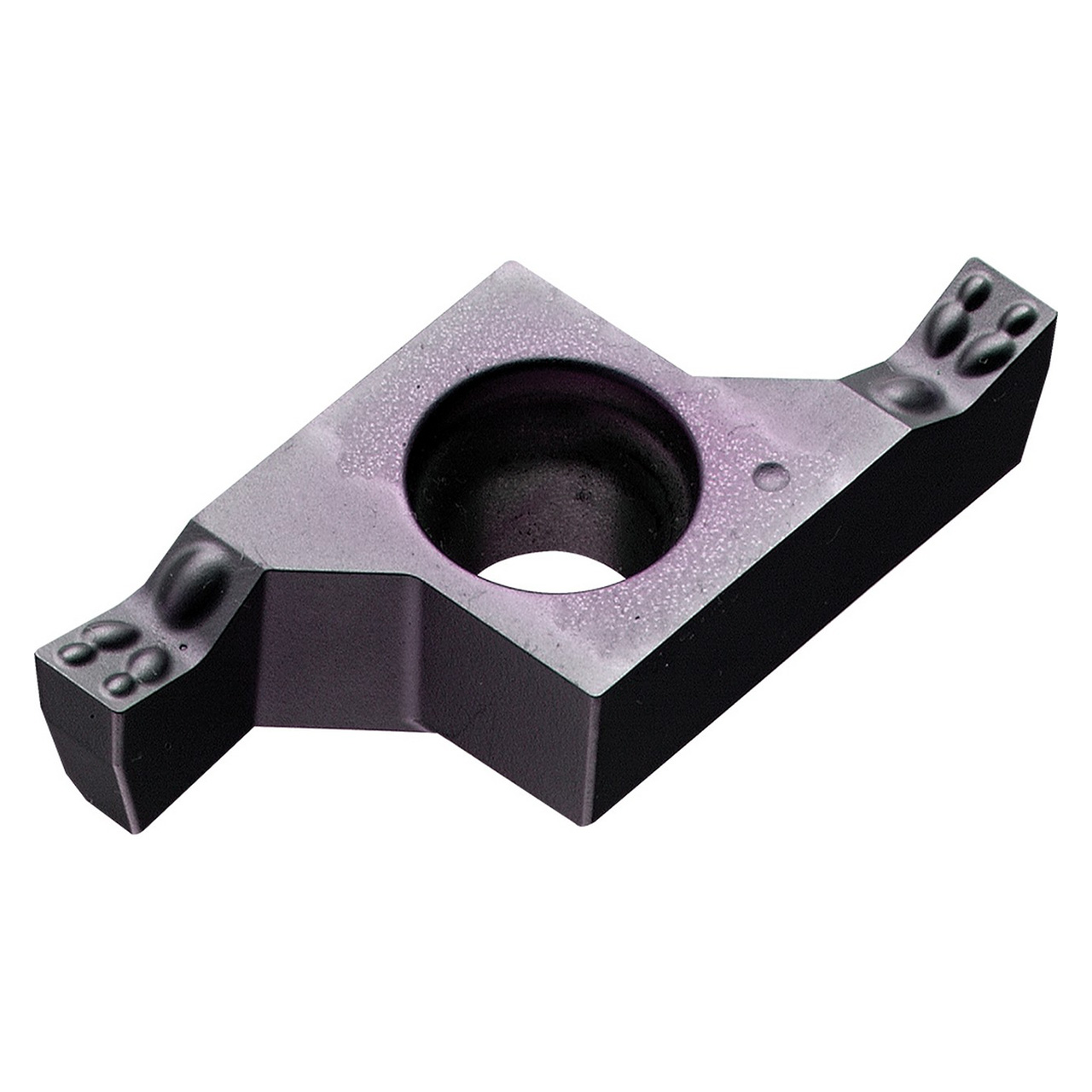

| Tool Number | TKE17116 |
| Max Depth of Cut (Decimal Inch) | 0.1260" |
| Max Depth of Cut (mm) | 3.20mm |
| Cutting Width (Decimal Inch) | 0.0906" |
| Cutting Width (mm) | 2.30mm |
| Cutting Width Minimum (Decimal Inch) | 0.0906" |
| Cutting Width Minimum (mm) | 2.30mm |
| Cutting Width Maximum (Decimal Inch) | 0.0906" |
| Cutting Width Maximum (mm) | 2.30mm |
| Insert Length (Decimal Inch) | 0.6472" |
| Insert Length (mm) | 16.44mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.199" |
| Thickness (mm) | 5.05mm |
| Application | Internal Grooving |
| Chipbreaker | M |
| Coating Process | PVD |
| Coolant Through (Yes/No) | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1225 |
| Insert Size | 230020 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
