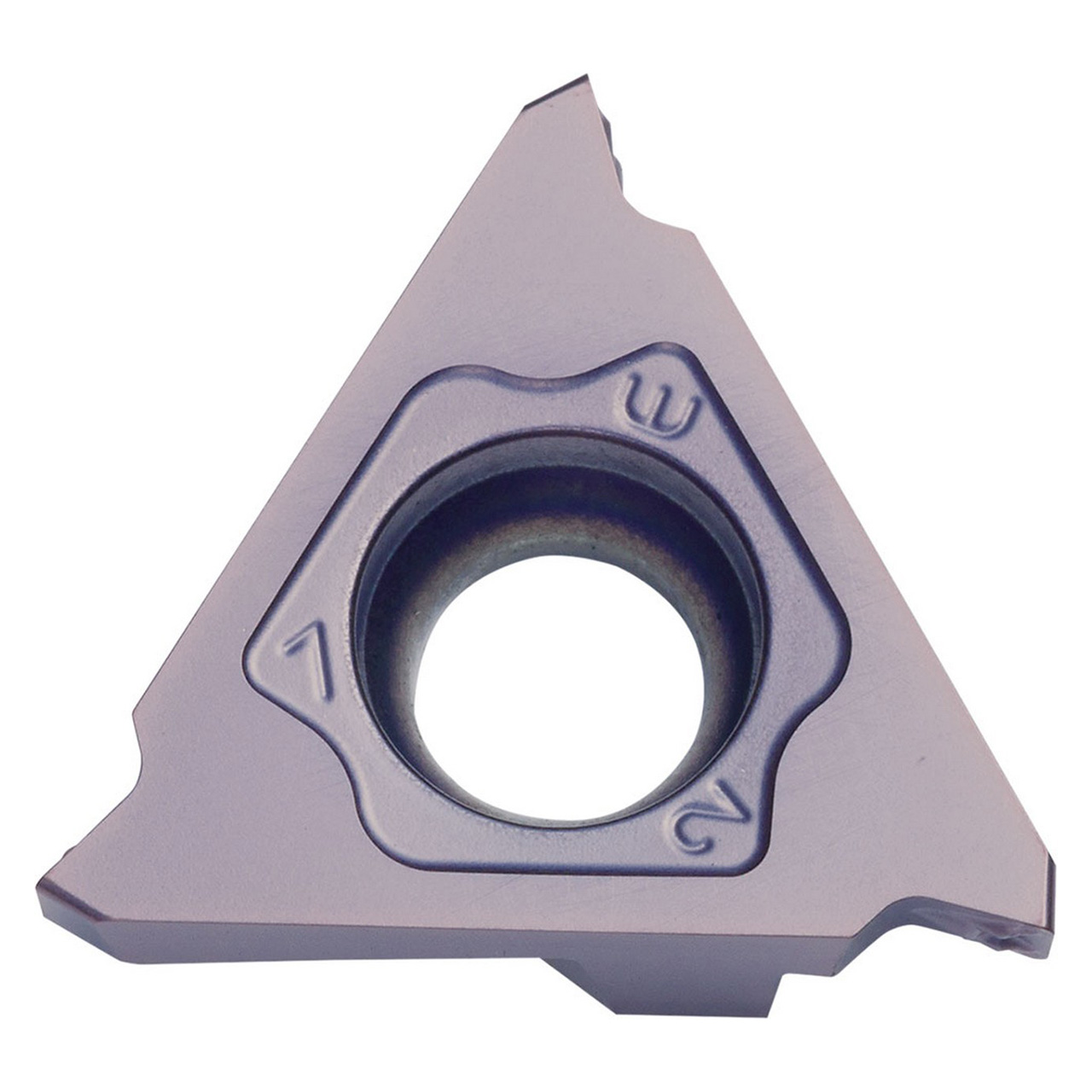

Features:
- Insert for external grooving
- Molded Chipbreaker, GM Chipbreaker
- 3 Cutting edges
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
Product Specifications
| Tool Number | TKH17620 |
| Max Depth of Cut (Decimal Inch) | 0.1378" |
| Max Depth of Cut (mm) | 3.50mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | External Grooving |
| Chipbreaker | GM |
| Coating Process | PVD |
| Cutting Range | Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PR1215 |
| Insert Size | 43 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Carbide;Cutting Width (Decimal Inch)=0.0591"""
Cutting Width (mm):
1.50mm
Maximum Depth of Cut (Decimal Inch):
0.1378"
Maximum Depth of Cut (mm):
3.50mm
Manufacturer's Grade:
PR1215
Finish/Coating:
PVD
