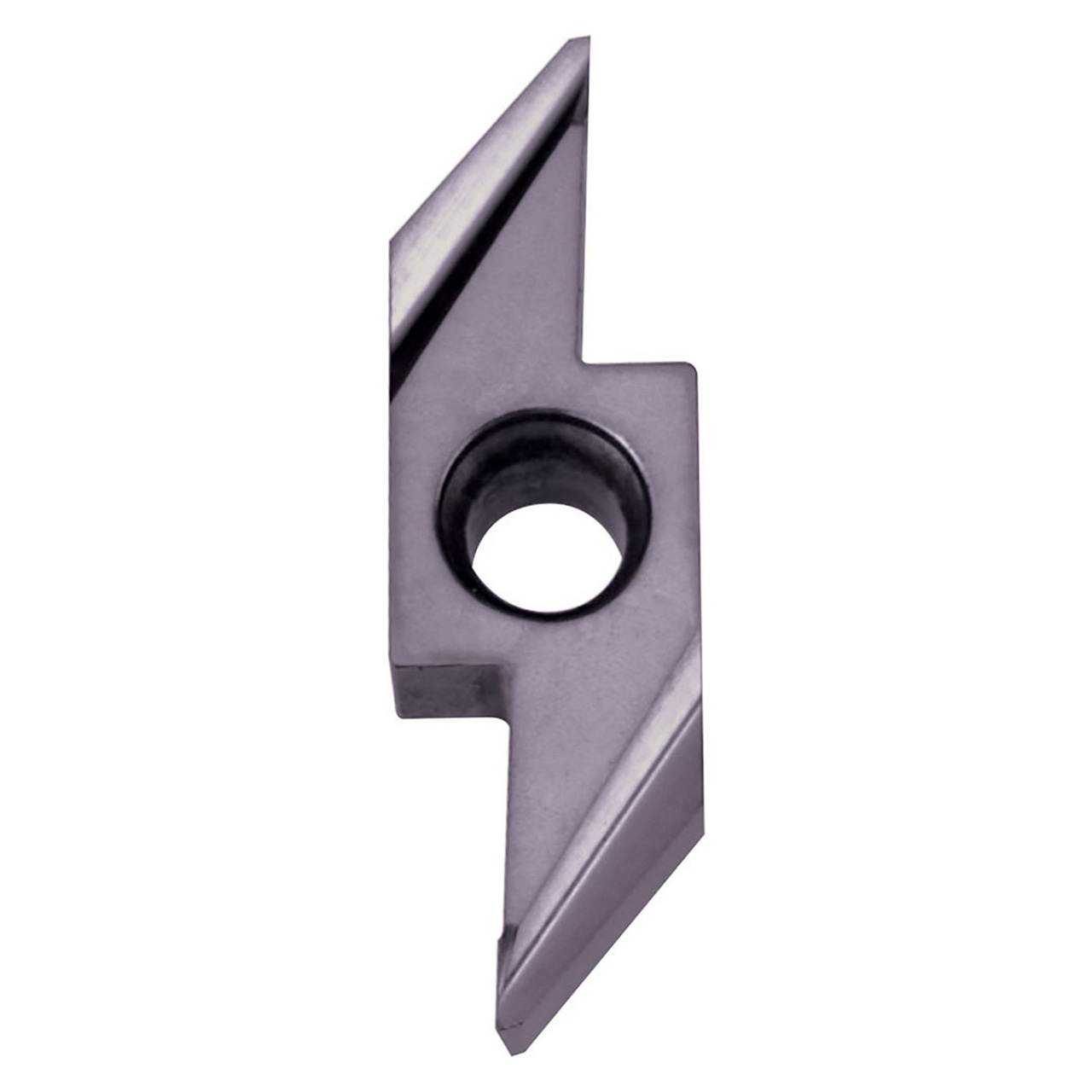

Kyocera Precision Tools TKT00996 | ABW23R5015 PR930 0.2756 Circle Diameter x 5/32" Thickness PVD Coated Carbide Indexable Turning Insert

$67.36 $39.07
(You save $28.29)
Brand:
Kyocera Precision Tools
Insert Style:
ABW
Insert Size:
23-5015
Material:
Carbide;Thickness (Inch)=5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0590"
Corner Radius (mm):
1.50mm
Manufacturer's Grade:
PR930
interval quantity:
10
SKU:
23239639
UPC:
Weight:
0.14 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Features:

  • Insert for back turning
  • 2 Cutting edges
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
EDP NumberTKT00996
Cutting Width (Decimal Inch)0.2756"
Cutting Width (mm)7.00mm
Cutting Width Minimum (Decimal Inch)0.2756"
Cutting Width Minimum (mm)7.00mm
Cutting Width Maximum (Decimal Inch)0.2756"
Cutting Width Maximum (mm)7.00mm
Insert Length (Decimal Inch)0.9213"
Insert Length (mm)23.40mm
Corner Radius (Inch)0.059"
Corner Radius (mm)1.50mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationBack Turning
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert GradePR930
Insert Holding MethodScrew or Clamp
Insert ShapeIrregular
Insert Size23-5015
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
