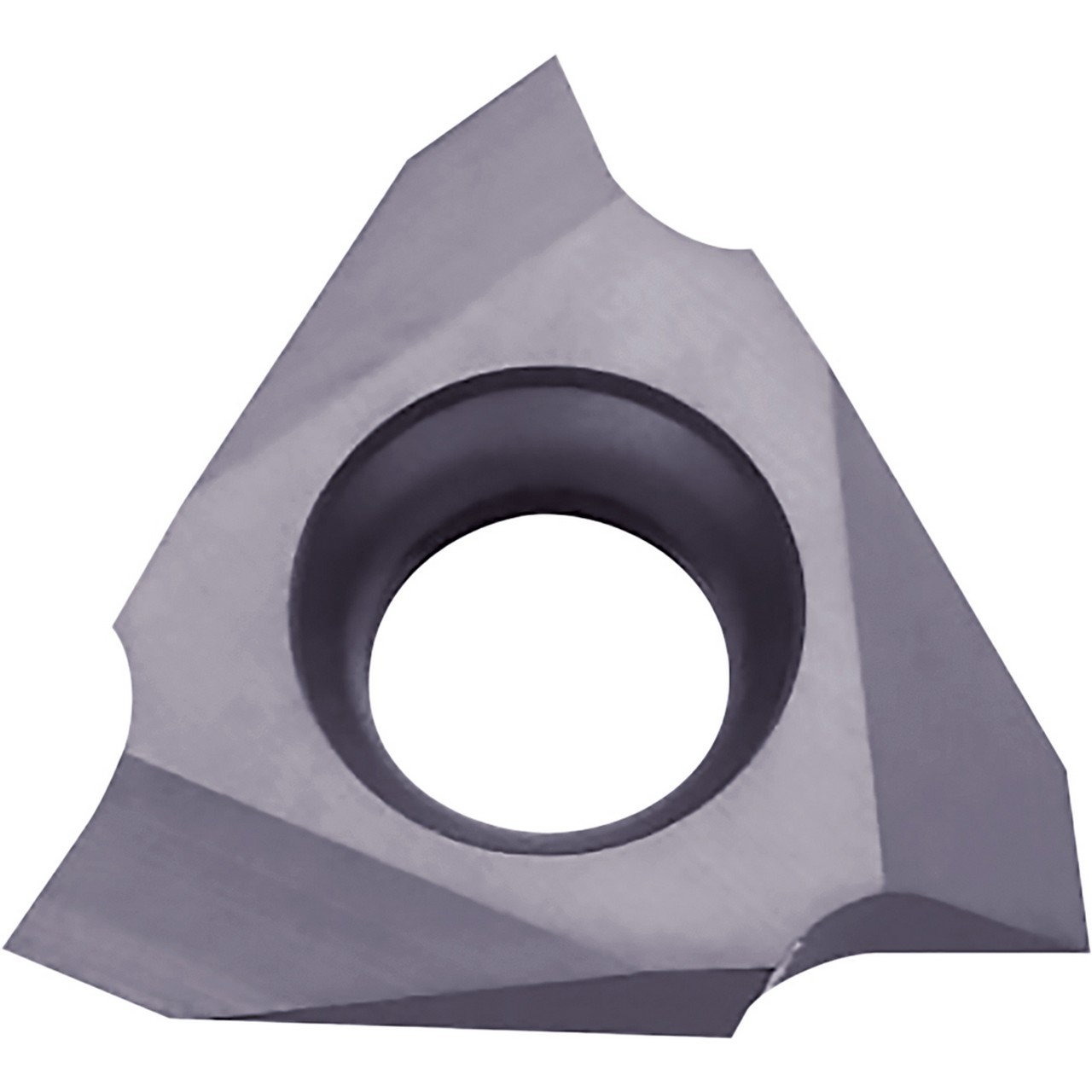

- Insert for external & internal threading with 3 cutting edges
- 60 Degree partial profile for metric (M), unified (UN) threads
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| EDP Number | TKT05710 |
| Inscribed Circle (Inch) | 3/8" |
| [IC] Inscribed Circle (mm) | 9.525mm |
| [RE] Corner Radius (Inch) | 0.004" |
| [RE] Corner Radius (mm) | 0.10mm |
| [S] Thickness (Inch) | 1/8" |
| [S] Thickness (mm) | 3.18mm |
| Application | External Threading | Internal Threading |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TT
Insert Size:
32
Thread Type:
External & Internal
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
PR930
Internal Pitch/TPI (Inch):
3/64 - 3/32 "
Internal Pitch/TPI (Decimal Inch):
0.0400 - 0.1000"
Internal Pitch/TPI (mm):
M: 1.0-2.5mm
External Pitch/TPI (Inch):
3/64 - 3/32 "
External Pitch/TPI (Decimal Inch):
0.0400 - 0.1000"
External Pitch/TPI (mm):
M: 1.0-2.5mm
Finish/Coating:
PVD;Material=Carbide
