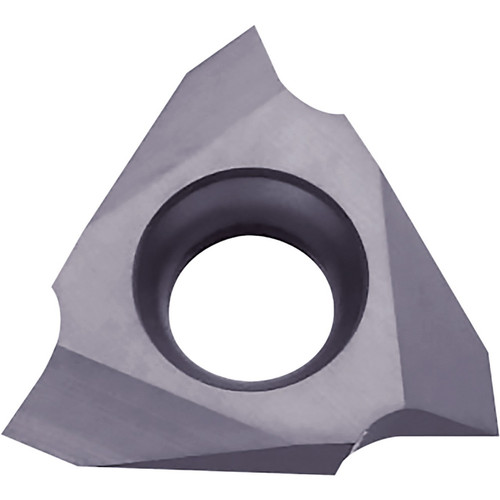

Kyocera Precision Tools TKT05860 | TTX32R60005 PR930 3/8" Circle Diameter x 1/8" Thickness PVD Coated Carbide Threading Insert

$57.22 $33.19
(You save $24.03)
Brand:
Kyocera Precision Tools
Insert Style:
TTX
Insert Size:
32
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
PR930
External Pitch/TPI (Inch):
1/64 - 3/64"
External Pitch/TPI (Decimal Inch):
0.0200 - 0.0400"
External Pitch/TPI (mm):
M: 0.5-1.0mm
Finish/Coating:
PVD;Material=Carbide
SKU:
23239913
UPC:
Weight:
0.06 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 3 cutting edges
  • 60 Degree partial profile for metric (M), unified (UN) threads
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
EDP NumberTKT05860
Inscribed Circle (Inch)3/8"
[IC] Inscribed Circle (mm)9.525mm
[RE] Corner Radius (Inch)0.002"
[RE] Corner Radius (mm)0.05mm
[S] Thickness (Inch)1/8"
[S] Thickness (mm)3.18mm
ApplicationExternal Threading
Coating ProcessPVD
