Features:

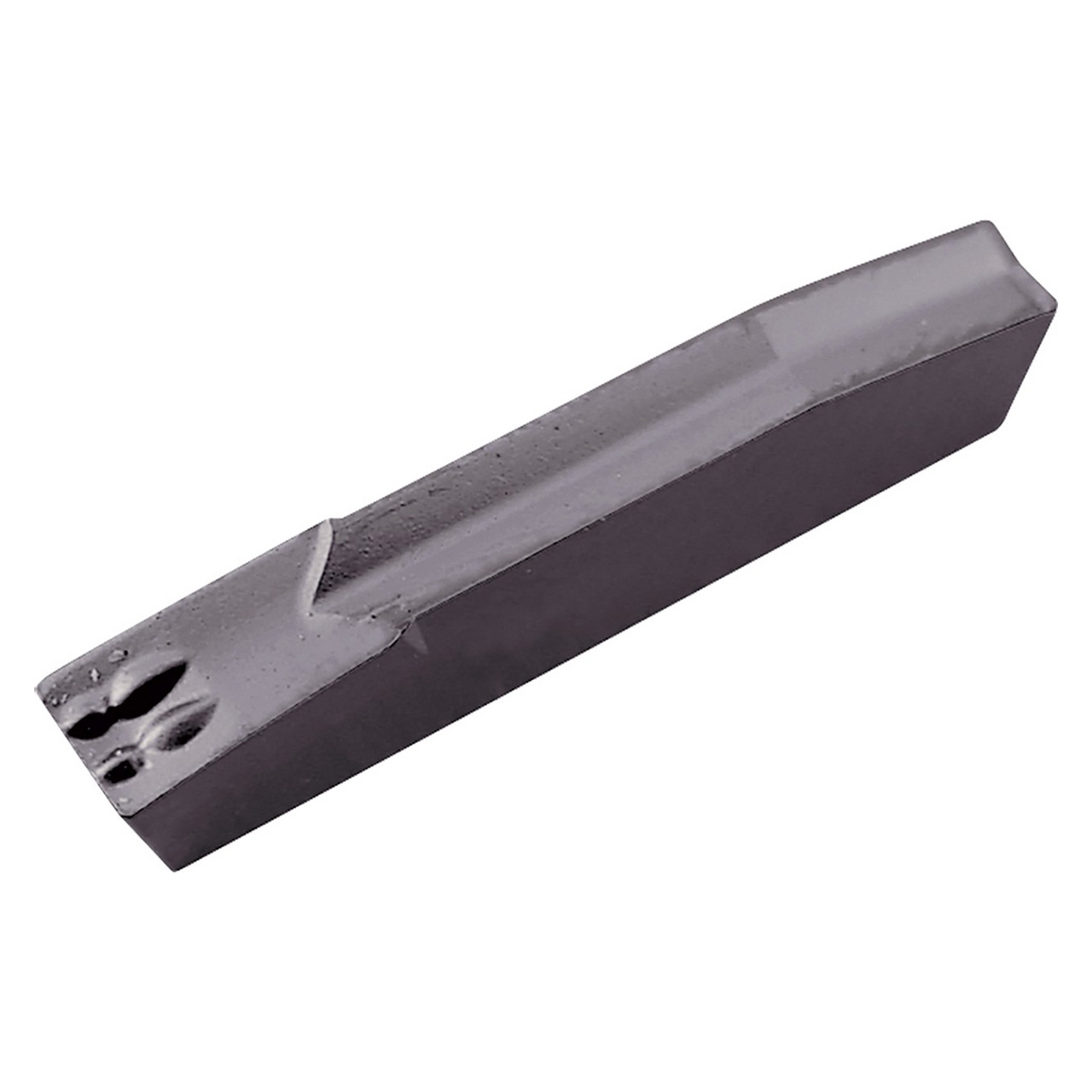

| Tool Number | TKT12501 |
| Max Depth of Cut (Decimal Inch) | 0.6693" |
| Max Depth of Cut (mm) | 17.00mm |
| Cutting Width (Decimal Inch) | 0.0866" |
| Cutting Width (mm) | 2.20mm |
| Cutting Width Minimum (Decimal Inch) | 0.0866" |
| Cutting Width Minimum (mm) | 2.20mm |
| Cutting Width Maximum (Decimal Inch) | 0.0866" |
| Cutting Width Maximum (mm) | 2.20mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.007" |
| Corner Radius (mm) | 0.17mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | Cut-Off | External Deep Grooving | External Grooving |
| Chipbreaker | D |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 228 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
