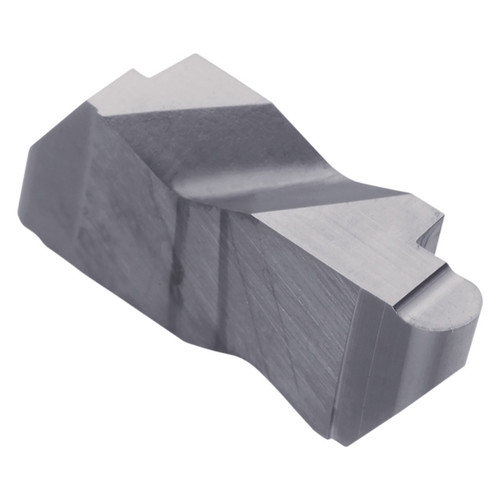

Features:
- Insert for external grooving, internal large diameter shallow grooving
- 2 Cutting edges
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| Tool Number | TKT89105 |
| Max Depth of Cut (Decimal Inch) | 0.0941" |
| Max Depth of Cut (mm) | 2.39mm |
| Cutting Width (Decimal Inch) | 0.0618" |
| Cutting Width (mm) | 1.57mm |
| Cutting Width Minimum (Decimal Inch) | 0.0618" |
| Cutting Width Minimum (mm) | 1.57mm |
| Cutting Width Maximum (Decimal Inch) | 0.0618" |
| Cutting Width Maximum (mm) | 1.57mm |
| Insert Length (Decimal Inch) | 0.8098" |
| Insert Length (mm) | 20.57mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.344" |
| Thickness (mm) | 8.74mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 3062 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
3062
Material:
Carbide;Cutting Width (Decimal Inch)=0.0618"""
Cutting Width (mm):
1.57mm
Maximum Depth of Cut (Decimal Inch):
0.0941"
Maximum Depth of Cut (mm):
2.39mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
