Features:

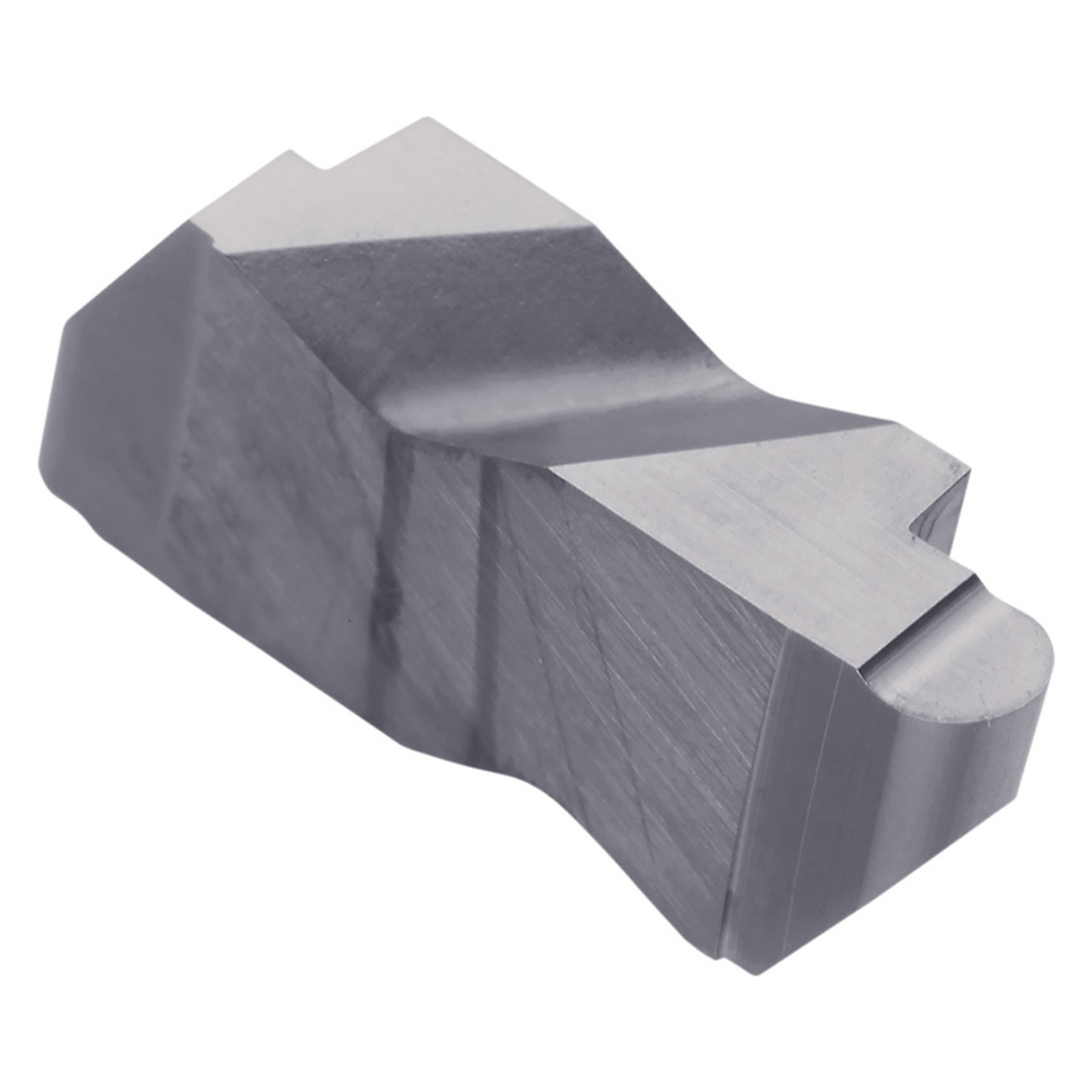

| Tool Number | TKT89134 |
| Max Depth of Cut (Decimal Inch) | 0.1496" |
| Max Depth of Cut (mm) | 3.80mm |
| Cutting Width (Decimal Inch) | 0.1252" |
| Cutting Width (mm) | 3.18mm |
| Cutting Width Minimum (Decimal Inch) | 0.1252" |
| Cutting Width Minimum (mm) | 3.18mm |
| Cutting Width Maximum (Decimal Inch) | 0.1252" |
| Cutting Width Maximum (mm) | 3.18mm |
| Insert Length (Decimal Inch) | 0.8098" |
| Insert Length (mm) | 20.57mm |
| Corner Radius (Inch) | 0.062" |
| Corner Radius (mm) | 1.57mm |
| Thickness (Inch) | 0.344" |
| Thickness (mm) | 8.74mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Full Radius | Yes |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 3062 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
