Features:

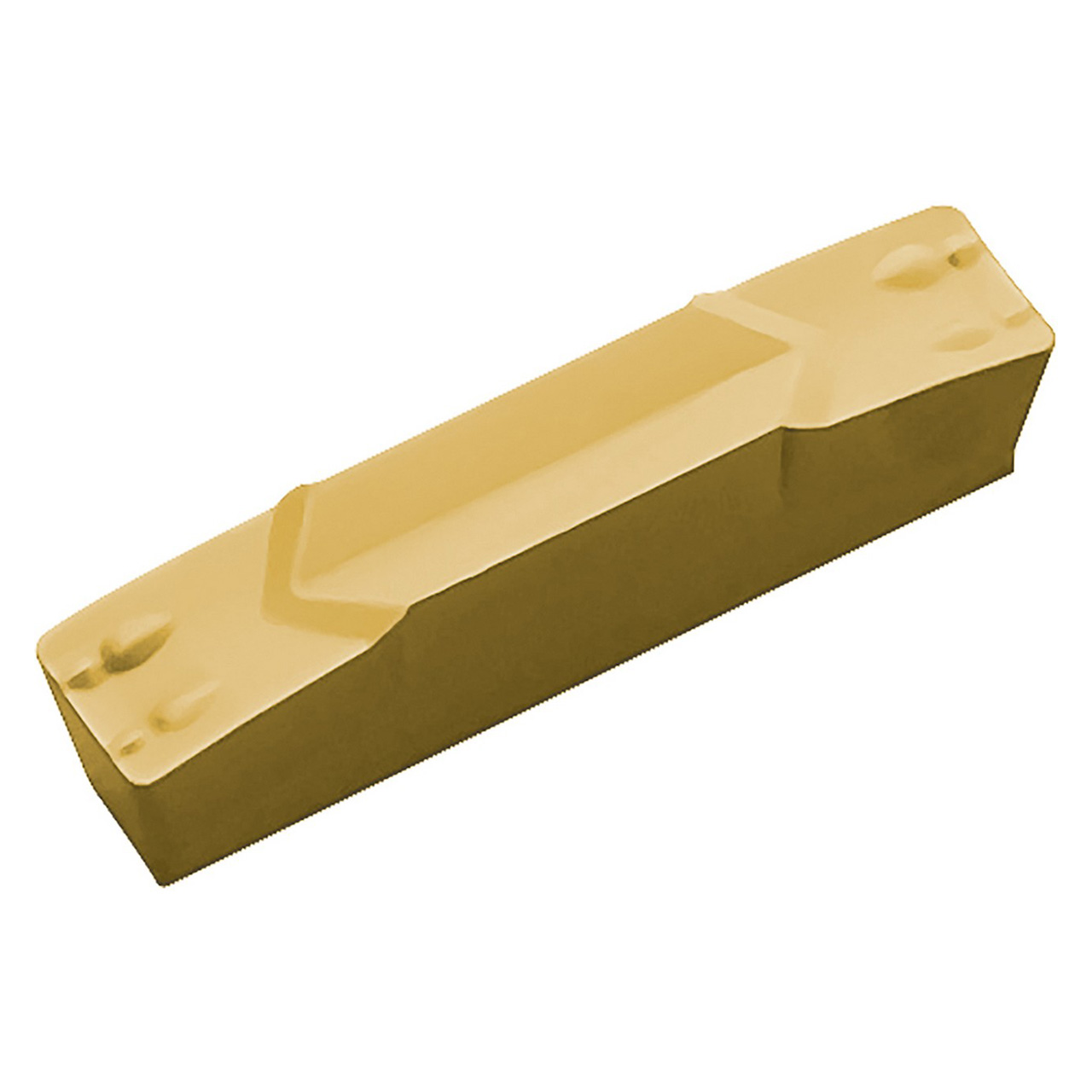

| Tool Number | TKW12855 |
| Max Depth of Cut (Decimal Inch) | 0.9843" |
| Max Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.3150" |
| Cutting Width (mm) | 8.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.3150" |
| Cutting Width Minimum (mm) | 8.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.3150" |
| Cutting Width Maximum (mm) | 8.00mm |
| Insert Length (Decimal Inch) | 1.1811" |
| Insert Length (mm) | 30.00mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 0.217" |
| Thickness (mm) | 5.50mm |
| Application | External Grooving | Traversing |
| Chipbreaker | MW |
| Coating Process | CVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | CR9025 |
| Insert Size | 8030080 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
