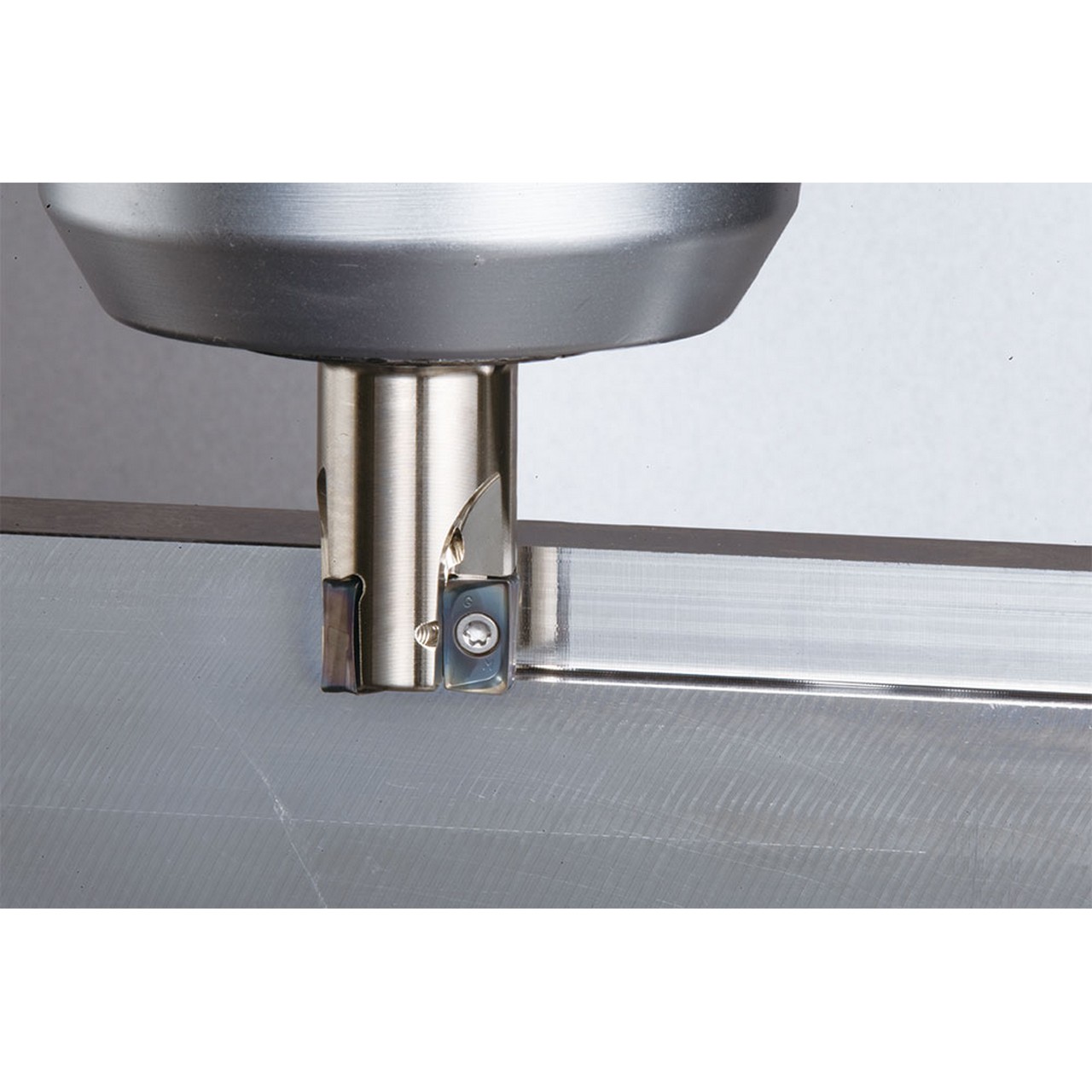

- Insert for facing, shouldering, slotting, helical milling
- Honed edge/general purpose with 4 cutting edges
- MEGACOAT NANO coating technology
- Nano thin multi-layer coating performs with wear resistance and high oxidation resistance
- Application: For gray and nodular cast iron, stable wear resistance and toughness
Product Specifications

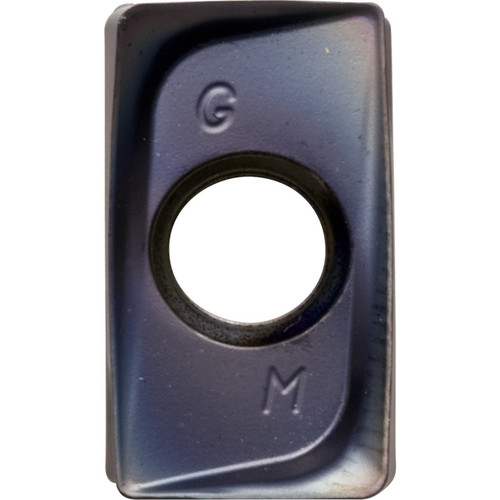

| EDP Number | TLA04386 |
| Insert Included Angle (Degree) | 90 Degree |
| [RE] Corner Radius (Inch) | 5/64" |
| [RE] Corner Radius (mm) | 2.00mm |
| [S] Thickness (Inch) | 0.220" |
| [S] Thickness (mm) | 5.60mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-GM |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
150520
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.60mm
