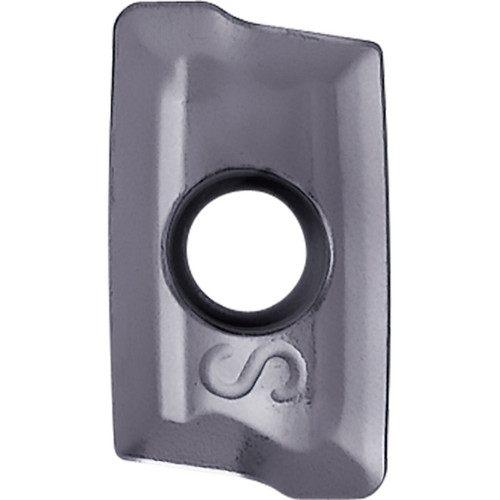

- Insert for facing, shouldering, slotting, helical milling
- Honed edge/low cutting force with 2 cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| EDP Number | TLC00335 |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.150" |
| [S] Thickness (mm) | 3.80mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-JS |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
11T308
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.1500"
Thickness (mm):
3.80mm
