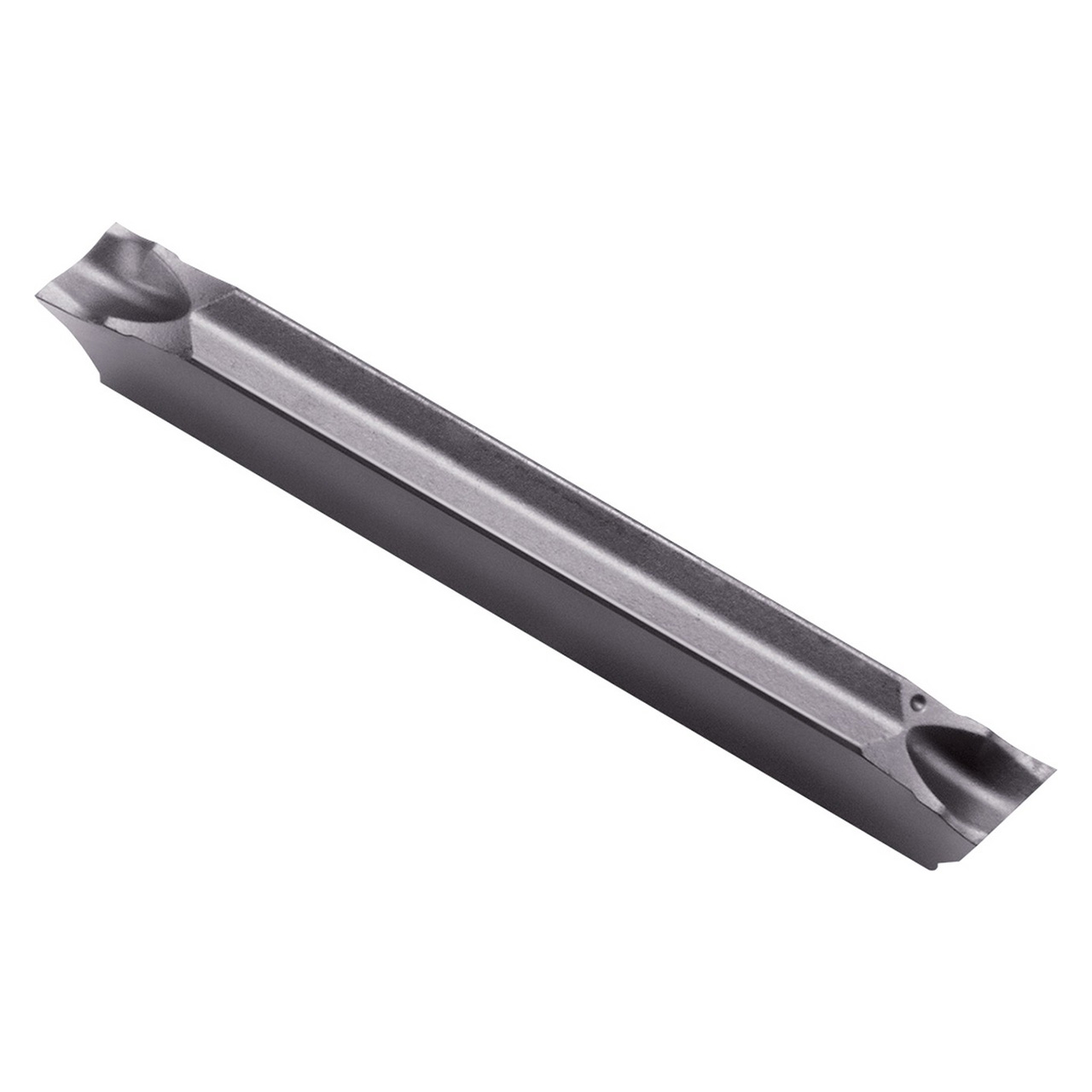

Kyocera Precision Tools TLC10413 | GDM1316L003PF15D PR1535 0.0512" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert

$15.26
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
1316
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.0512"
Cutting Width (mm):
1.30mm
Manufacturer's Grade:
PR1535
Series:
KGD
SKU:
23242064
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off for Small parts machining
  • 15 Degree lead angle / Low feed / 2-edge
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC10413
Cutting Width (Decimal Inch)0.0512"
Cutting Width (mm)1.30mm
Cutting Width Minimum (Decimal Inch)0.0512"
Cutting Width Minimum (mm)1.30mm
Cutting Width Maximum (Decimal Inch)0.0512"
Cutting Width Maximum (mm)1.30mm
Insert Length (Decimal Inch)0.6299"
Insert Length (mm)16.00mm
Corner Radius (Inch)0.001"
Corner Radius (mm)0.03mm
Thickness (Inch)0.146"
Thickness (mm)3.70mm
ApplicationCut-Off | Small Parts Machining
ChipbreakerPF
Coating ProcessPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodClamp
Insert GradePR1535
Insert Size1316
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)
Usage ClassificationLight Interruption
