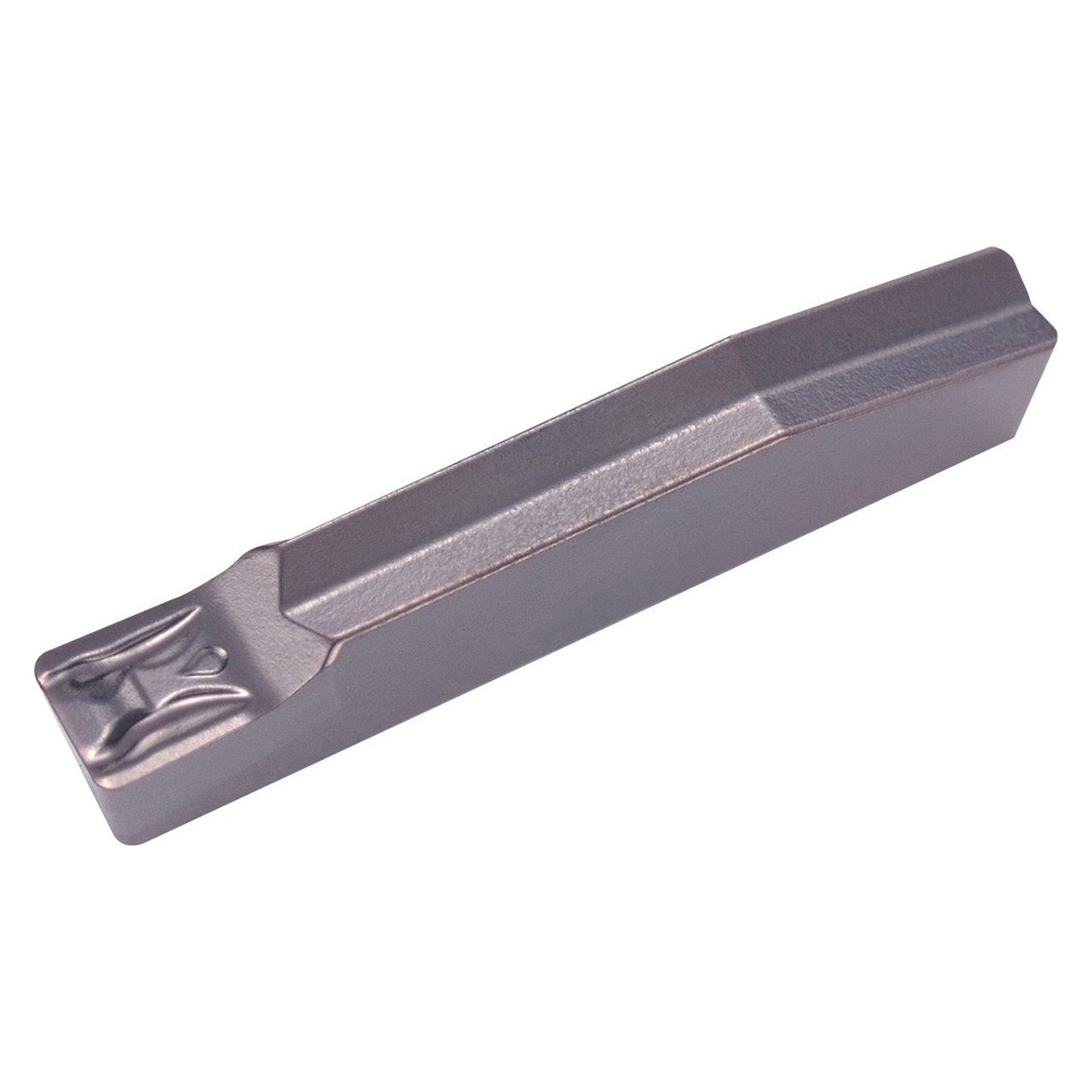

Kyocera Precision Tools TLC10622 | GDMS6020N080GM PR1535 0.2362" Cutting width x 0.7874" Insert Length PVD Coated Carbide Grooving Insert

$32.84 $19.05
(You save $13.79)
Brand:
Kyocera Precision Tools
Insert Style:
GDMS
Insert Size:
6020
Material:
Carbide;Cutting Width (Decimal Inch)=0.2362"
Cutting Width (mm):
6.00mm
Maximum Depth of Cut (Decimal Inch):
1.1811"
Maximum Depth of Cut (mm):
30.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
interval quantity:
10
SKU:
23242098
UPC:
Weight:
0.18 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for external grooving, traversing
  • General Purpose / 1-edge
  • 1 Cutting edge
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC10622
Max Depth of Cut (Decimal Inch)1.1811"
Max Depth of Cut (mm)30.00mm
Cutting Width (Decimal Inch)0.2362"
Cutting Width (mm)6.00mm
Cutting Width Minimum (Decimal Inch)0.2362"
Cutting Width Minimum (mm)6.00mm
Cutting Width Maximum (Decimal Inch)0.2362"
Cutting Width Maximum (mm)6.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving | Traversing
ChipbreakerGM
Coating ProcessPVD
Cutting RangeMedium Roughing
HandNeutral
Insert Holding MethodClamp
Insert GradePR1535
Insert Size6020
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
