Features:

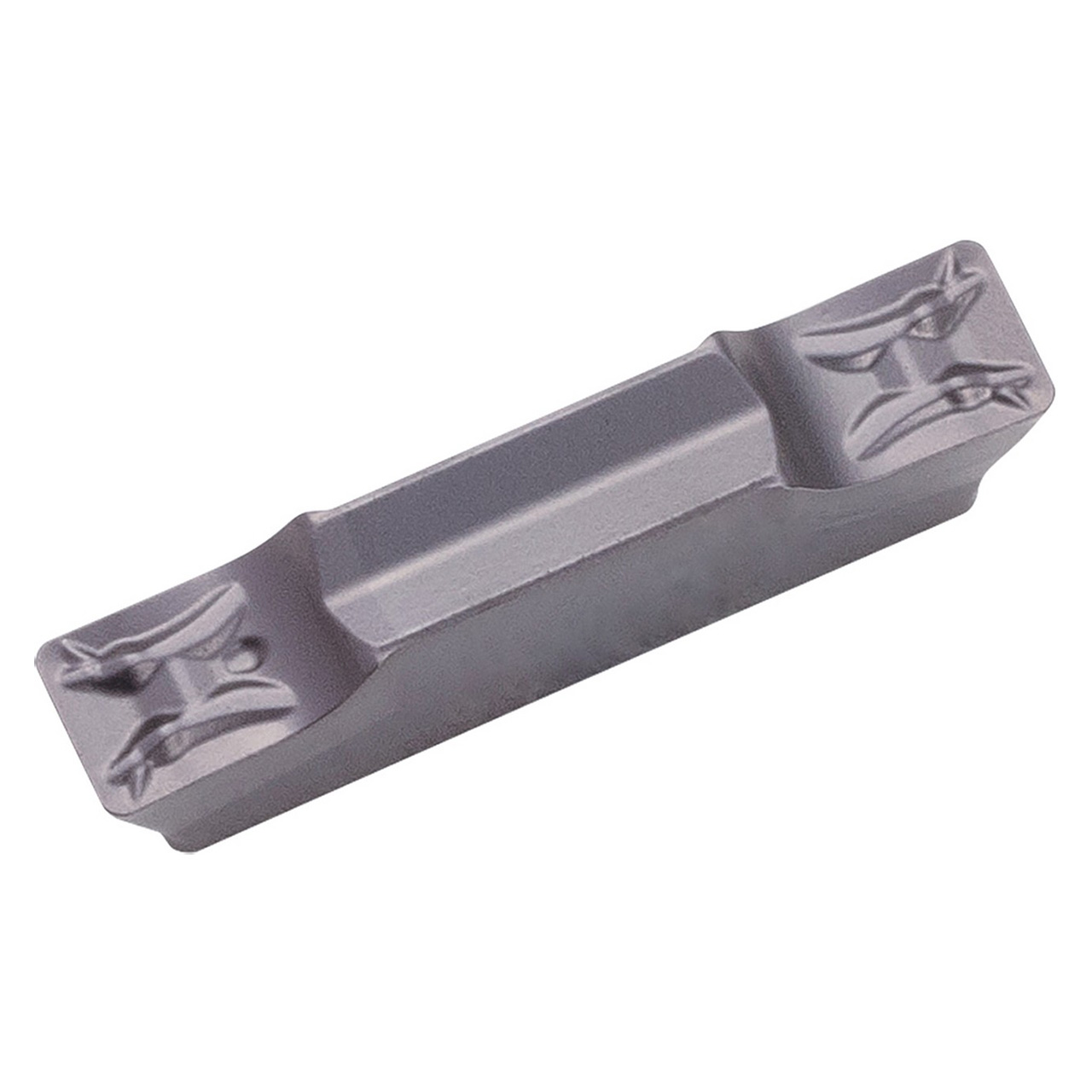

| Tool Number | TLC10950 |
| Max Depth of Cut (Decimal Inch) | 0.4331" |
| Max Depth of Cut (mm) | 11.00mm |
| Cutting Width (Decimal Inch) | 0.1969" |
| Cutting Width (mm) | 5.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1969" |
| Cutting Width Minimum (mm) | 5.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1969" |
| Cutting Width Maximum (mm) | 5.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |

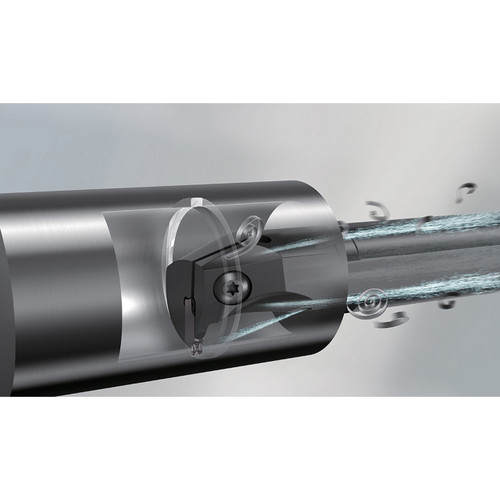

| Application | Internal Grooving |
| Chipbreaker | GMI |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR1535 |
| Insert Size | 5020 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
