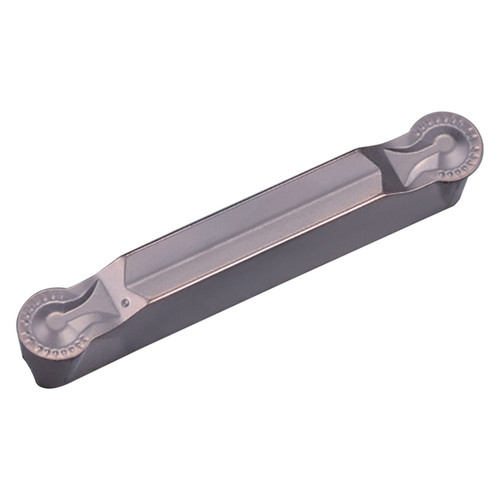

Features:
- Insert for internal grooving
- 2 Cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| Tool Number | TLC10960 |
| Max Depth of Cut (Decimal Inch) | 0.3150" |
| Max Depth of Cut (mm) | 8.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.6417" |
| Insert Length (mm) | 16.30mm |
| Corner Radius (Inch) | 0.059" |
| Corner Radius (mm) | 1.50mm |
| Thickness (Inch) | 0.181" |
| Thickness (mm) | 4.60mm |
| Application | Internal Grooving |
| Chipbreaker | CM |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Full Radius | Yes |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR1535 |
| Insert Size | 3015 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GDM
Insert Size:
3015
Material:
Carbide;Cutting Width (Decimal Inch)=0.1181"""
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
