Features:

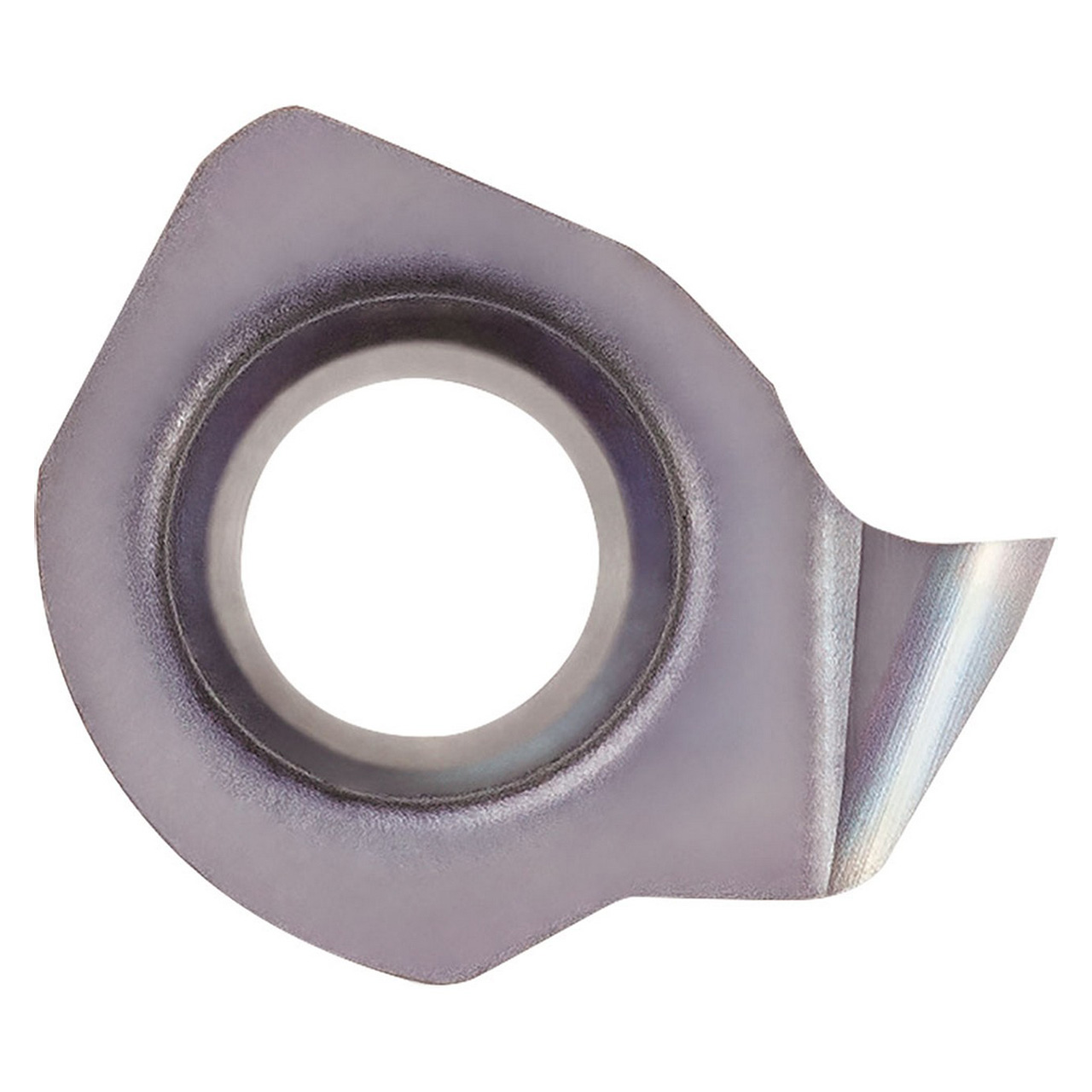

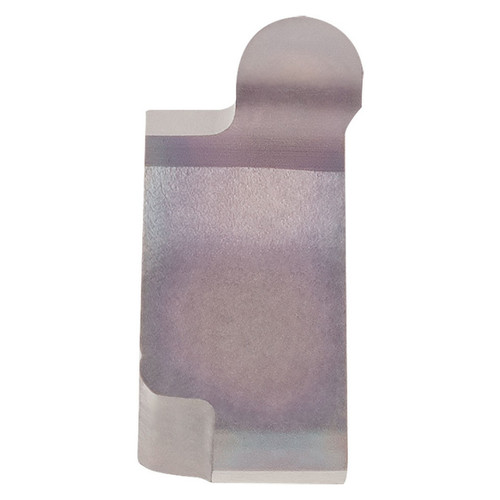

| Tool Number | TLC40118 |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Insert Length (Decimal Inch) | 0.3780" |
| Insert Length (mm) | 9.60mm |
| Corner Radius (Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Thickness (Inch) | 0.173" |
| Thickness (mm) | 4.40mm |
| Application | Internal Grooving | Small Parts Machining |
| Chipbreaker | R |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PR1535 |
| Insert Size | 10 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
