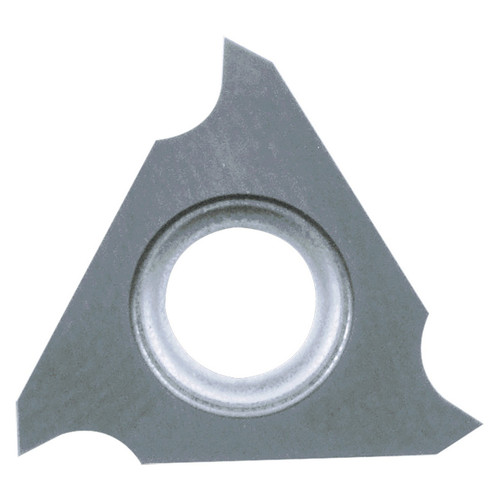

Features:
- Insert for external grooving
- 3 Cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for carbon/alloy steel and stainless steel
Product Specifications
| Tool Number | TLC40158 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0295" |
| Cutting Width (mm) | 0.75mm |
| Cutting Width Minimum (Decimal Inch) | 0.0295" |
| Cutting Width Minimum (mm) | 0.75mm |
| Cutting Width Maximum (Decimal Inch) | 0.0295" |
| Cutting Width Maximum (mm) | 0.75mm |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Grooving |
| Coating Process | Uncoated |
| Cutting Range | Medium Roughing |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1535 |
| Insert Size | 075 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
075
Material:
Carbide;Cutting Width (Decimal Inch)=0.0295"""
Cutting Width (mm):
0.75mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
Uncoated
