Features:
| EDP Number | TLC56076 |
| Inscribed Circle (Inch) | 7/32" |
| Inscribed Circle (mm) | 5.56mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Turning | Up Facing |
| Chipbreaker | U |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw or Clamp |

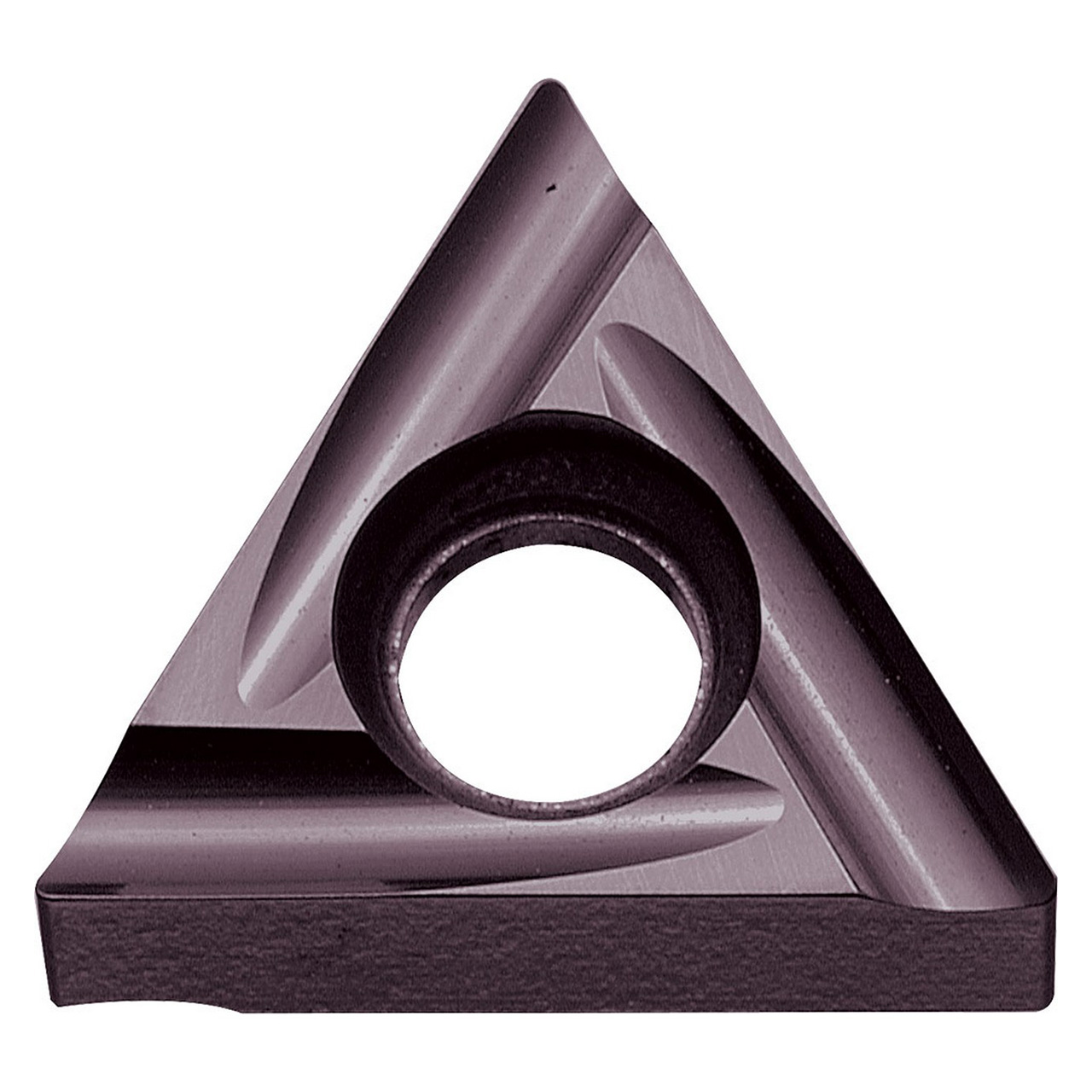

| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 1821 |
| Material | Carbide |
| Number of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy |
| Usage Classification | Light Interruption |
