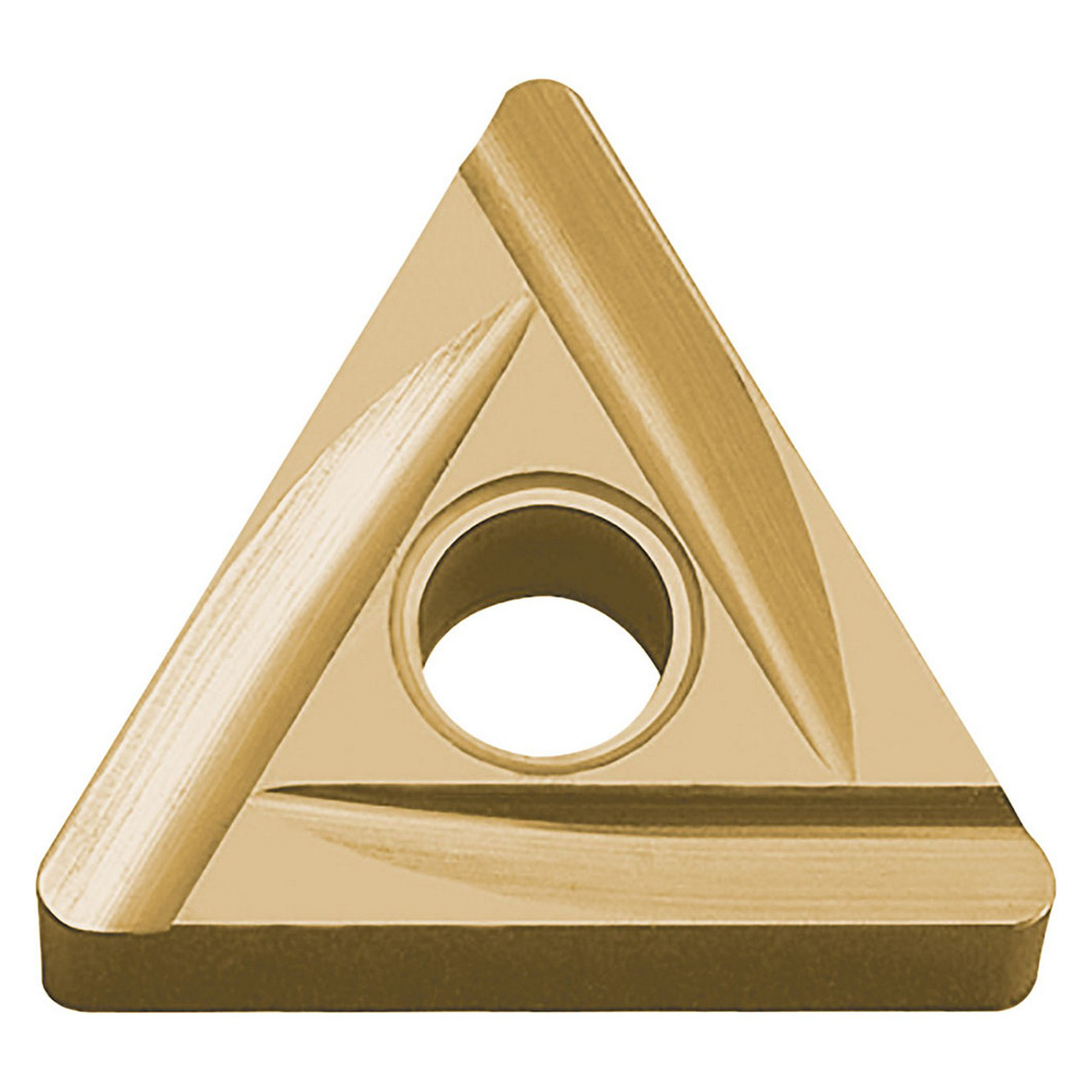

Kyocera Precision Tools TLD05933 | TNGG221LB PV720 1/4" Circle Diameter x 1/8" Thickness PVD Coated Cermet Indexable Turning Insert

SKU: 23243216 Weight: 0.05 LBS Minimum Purchase: 10 unit
UPC:
$23.56 $13.66
(You save $9.90)
Total Price: $13.66
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, facing, up facing, copying, chamfering, boring
  • 6 Cutting edges
  • MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance
  • Application: Recommended cermet for stable steel machining and high quality surface finish

Product Specifications
EDP NumberTLD05933
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationBoring | Chamfering | Copying | External Turning | Facing | Up Facing
ChipbreakerB
Coating ProcessPVD
Cutting RangeFinishing Medium
HandLeft Hand
Insert GradePV720
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size221
MaterialCermet
Number of Cutting Edges6
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
