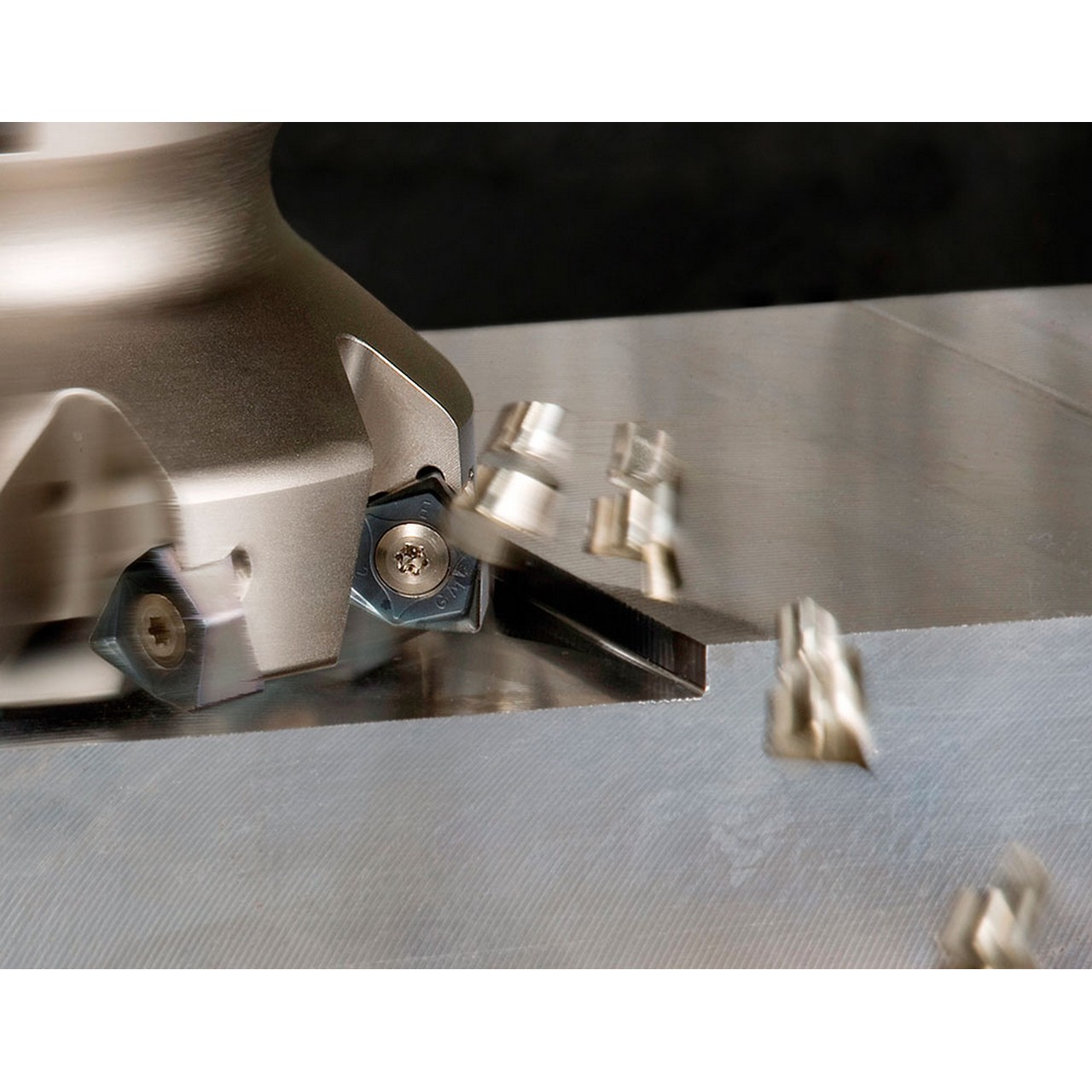

Kyocera Precision Tools TLE09330 | WNGT080608FNAM PDL025 0.552" Circle Diameter x 0.262" Thickness DLC Coated Carbide Milling Insert

$25.65
Brand:
Kyocera Precision Tools
Insert Size:
080608
Material:
Carbide;Finish/Coating=DLC
Inscribed Circle (Decimal Inch):
0.5500"
Inscribed Circle (mm):
14.02mm
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.65mm
SKU:
23243712
Weight:
0.27 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting
  • Honed edge with 3 cutting edges
  • Hydrogen free DLC coating for high hardness close to that of diamond
  • Application: Stable cutting of aluminum with turning, milling, and cut-off operations

Product Specifications
EDP NumberTLE09330
Insert Included Angle (Degree)80 Degree
Inscribed Circle (Inch)0.552"
[IC] Inscribed Circle (mm)14.02mm
[RE] Corner Radius (Inch)1/32"
[RE] Corner Radius (mm)0.80mm
[S] Thickness (Inch)0.262"
[S] Thickness (mm)6.65mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerFN-AM
Coating ProcessDLC
