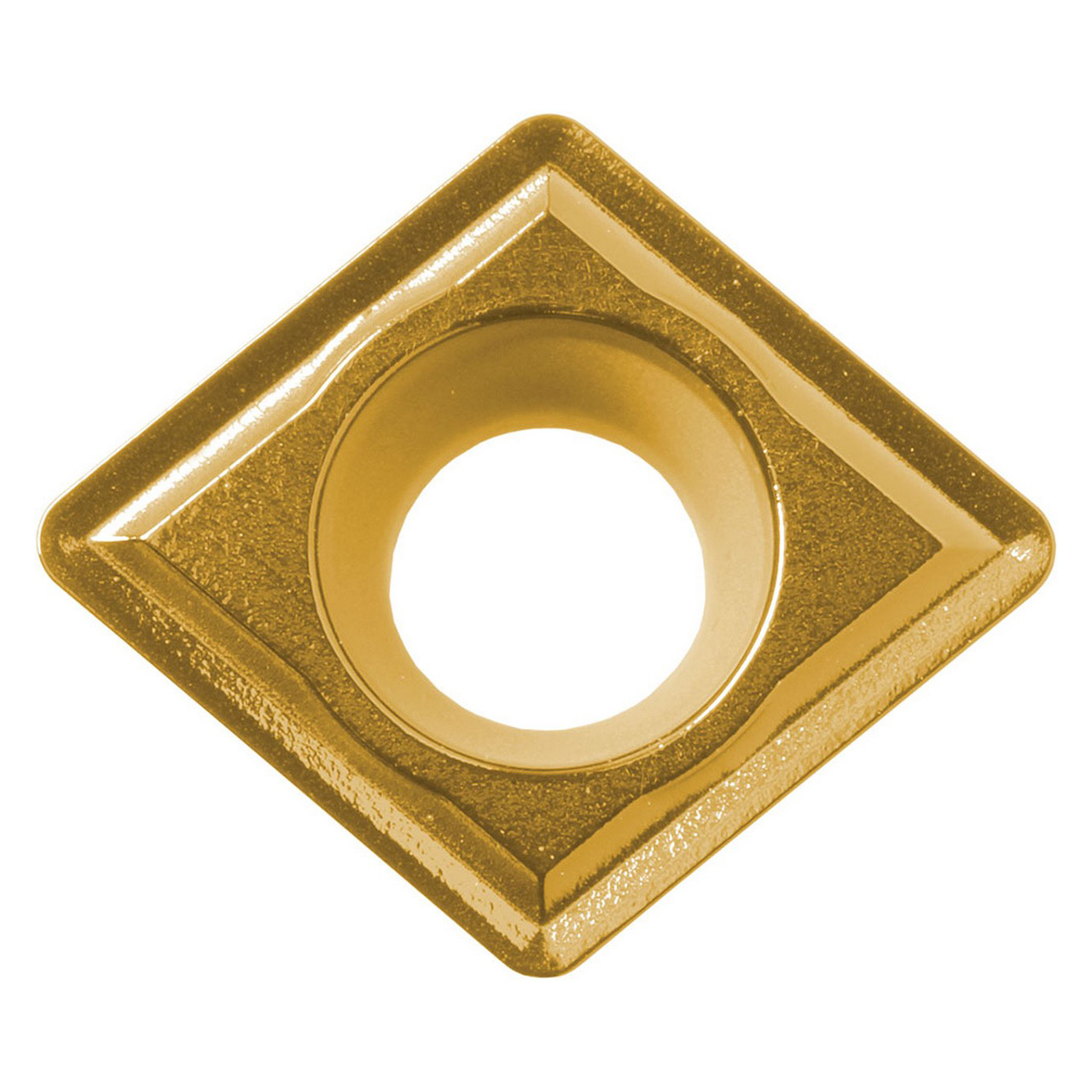

Kyocera Precision Tools TLF01202 | CCGT2151 PV710 1/4" Circle Diameter x 3/32" Thickness PVD Coated Cermet Indexable Turning Insert

SKU: 23243781 Weight: 0.04 LBS Minimum Purchase: 10 unit
UPC:
$24.44 $14.18
(You save $10.26)
Total Price: $14.18
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, facing, boring, internal facing, sub-spindle
  • 2 Cutting edges
  • MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
  • Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts

Product Specifications
EDP NumberTLF01202
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring | External Turning | Facing | Internal Facing | Sub-Spindle
Coating ProcessPVD
Cutting RangeMedium
HandNeutral
Insert GradePV710
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size2151
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
