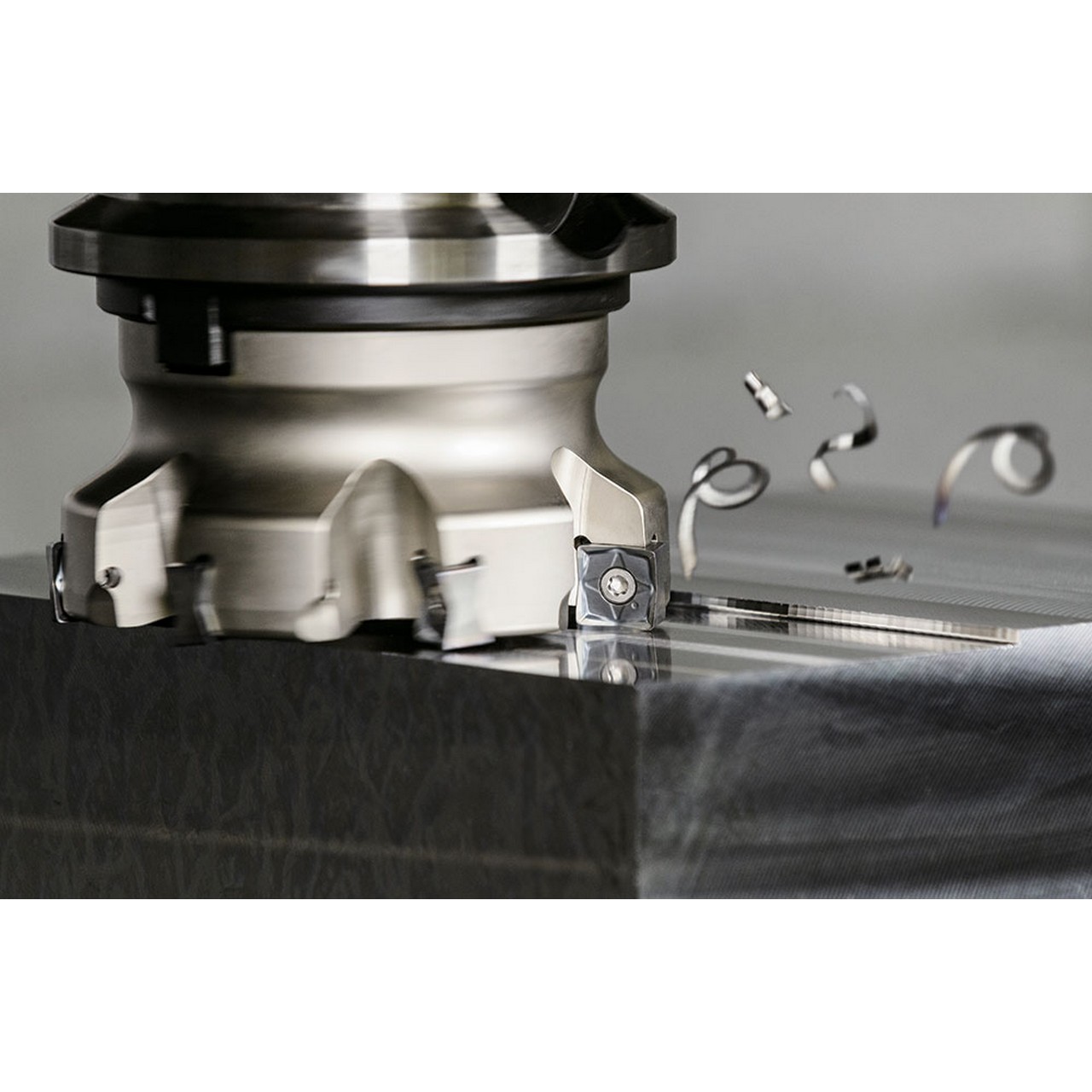

- Insert for facing
- Honed edge/tough edge (Heavy milling ) with 8 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLJ59005 |
| Insert Included Angle (Degree) | 90 Degree |
| Inscribed Circle (Inch) | 0.512" |
| [IC] Inscribed Circle (mm) | 13.00mm |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.217" |
| [S] Thickness (mm) | 5.51mm |
| Application | Facing |
| Chipbreaker | EN-GH |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
130508
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5100"
Inscribed Circle (mm):
13.00mm
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.51mm
