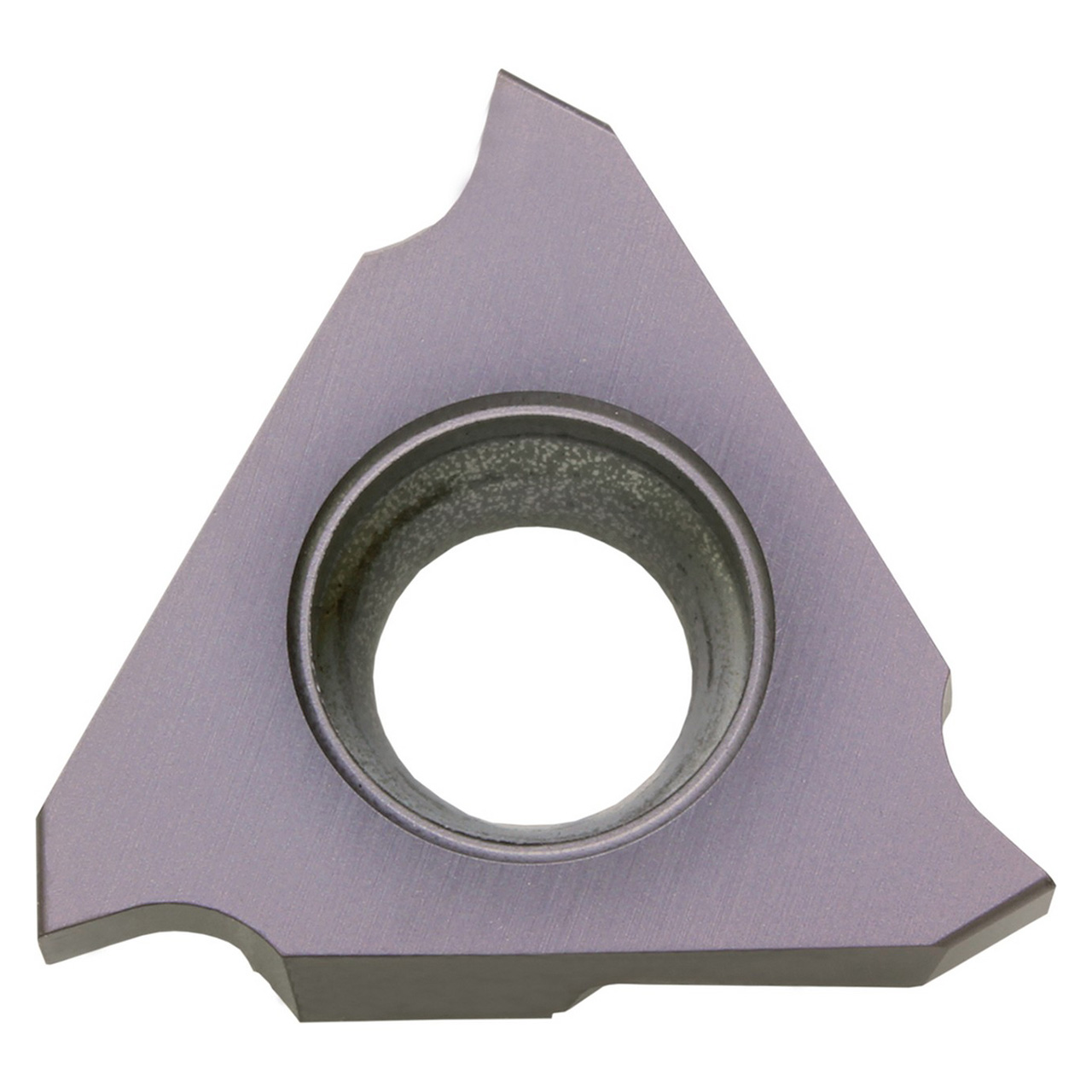

Kyocera Precision Tools TLL17157 | GBA32L300020 PR1625 0.1181" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$22.45
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
32
Material:
Carbide;Cutting Width (Decimal Inch)=0.1181"""
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.50mm
Manufacturer's Grade:
PR1625
Finish/Coating:
PVD
SKU:
23244781
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Nano thin multi-layer coating MEGACOAT NANO for superior wear resistance and high oxidation resistance
  • Application: Stable machining and long tool life when grooving steel and stainless steel

Product Specifications
Tool NumberTLL17157
Max Depth of Cut (Decimal Inch)0.0984"
Max Depth of Cut (mm)2.50mm
Cutting Width (Decimal Inch)0.1181"
Cutting Width (mm)3.00mm
Cutting Width Minimum (Decimal Inch)0.1181"
Cutting Width Minimum (mm)3.00mm
Cutting Width Maximum (Decimal Inch)0.1181"
Cutting Width Maximum (mm)3.00mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
Coating ProcessPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodScrew or Clamp
Insert GradePR1625
Insert Size32
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
