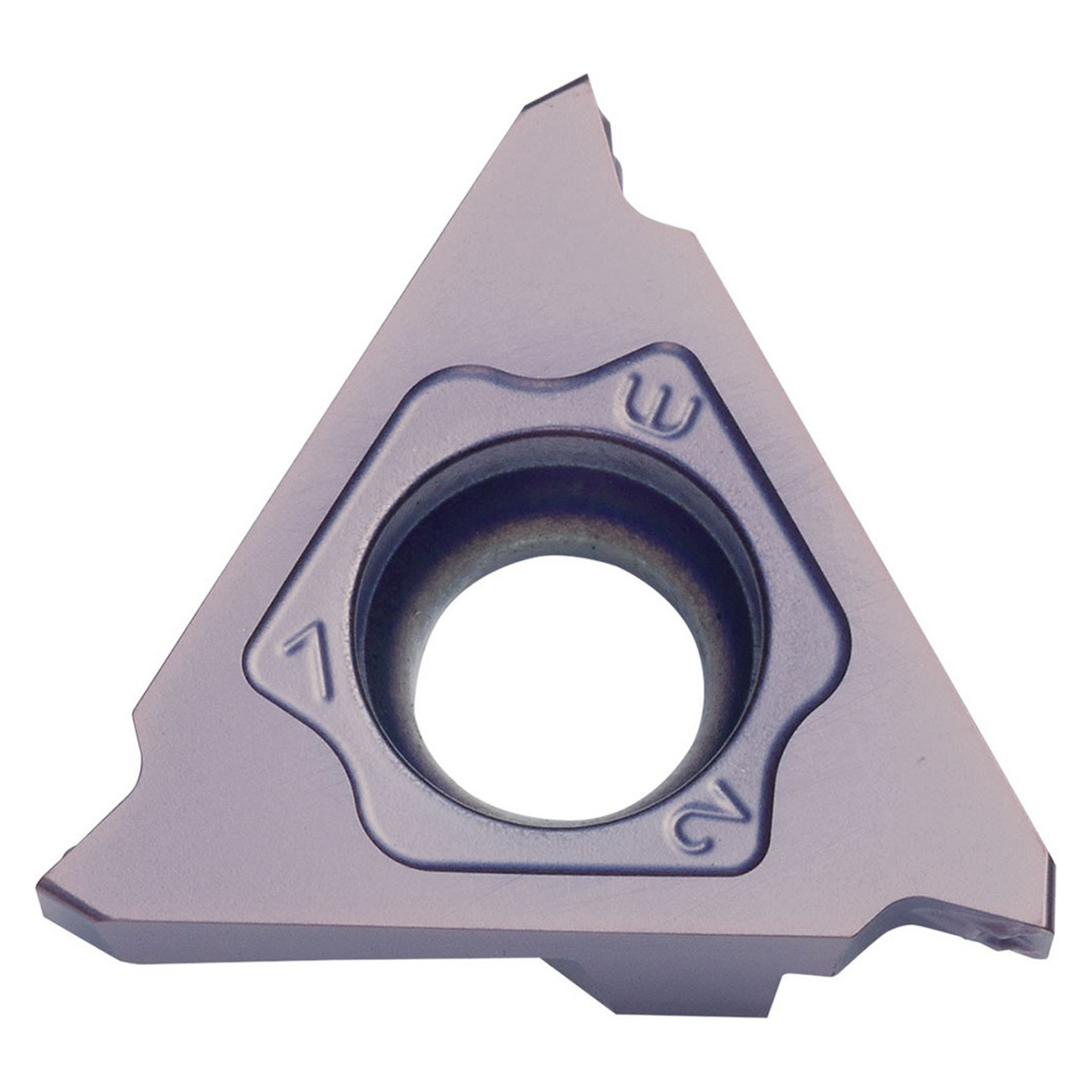

Features:
- Insert for external grooving
- Molded Chipbreaker, GM Chipbreaker
- 3 Cutting edges
- Nano thin multi-layer coating MEGACOAT NANO for superior wear resistance and high oxidation resistance
- Application: Stable machining and long tool life when grooving steel and stainless steel
Product Specifications
| Tool Number | TLL17710 |
| Max Depth of Cut (Decimal Inch) | 0.1969" |
| Max Depth of Cut (mm) | 5.00mm |
| Cutting Width (Decimal Inch) | 0.1299" |
| Cutting Width (mm) | 3.30mm |
| Cutting Width Minimum (Decimal Inch) | 0.1299" |
| Cutting Width Minimum (mm) | 3.30mm |
| Cutting Width Maximum (Decimal Inch) | 0.1299" |
| Cutting Width Maximum (mm) | 3.30mm |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | External Grooving |
| Chipbreaker | GM |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PR1625 |
| Insert Size | 43 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Carbide;Cutting Width (Decimal Inch)=0.1299"
Cutting Width (mm):
3.30mm
Maximum Depth of Cut (Decimal Inch):
0.1969"
Maximum Depth of Cut (mm):
5.00mm
Manufacturer's Grade:
PR1625
Finish/Coating:
PVD
