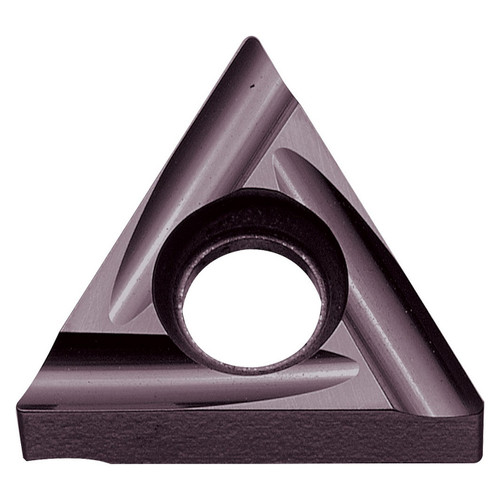

Kyocera Precision Tools TLM00273 | TNGU18205MFRU PR1725 7/32" Circle Diameter x 1/8" Thickness PVD Coated Carbide Indexable Turning Insert

$33.32 $19.33
(You save $13.99)
Brand:
Kyocera Precision Tools
Insert Style:
TNGU
Insert Size:
18205
Material:
Carbide;Inscribed Circle (Inch)=7/32"""
Inscribed Circle (Decimal Inch):
0.2189"
Inscribed Circle (mm):
5.56mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
interval quantity:
10
SKU:
23245174
UPC:
Weight:
0.06 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, up facing
  • Sharp edge/minus tolerance corner radius with 6 cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications

Product Specifications
EDP NumberTLM00273
Inscribed Circle (Inch)7/32"
Inscribed Circle (mm)5.56mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Turning | Up Facing
ChipbreakerU
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert GradePR1725
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size18205
MaterialCarbide
Number of Cutting Edges6
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
