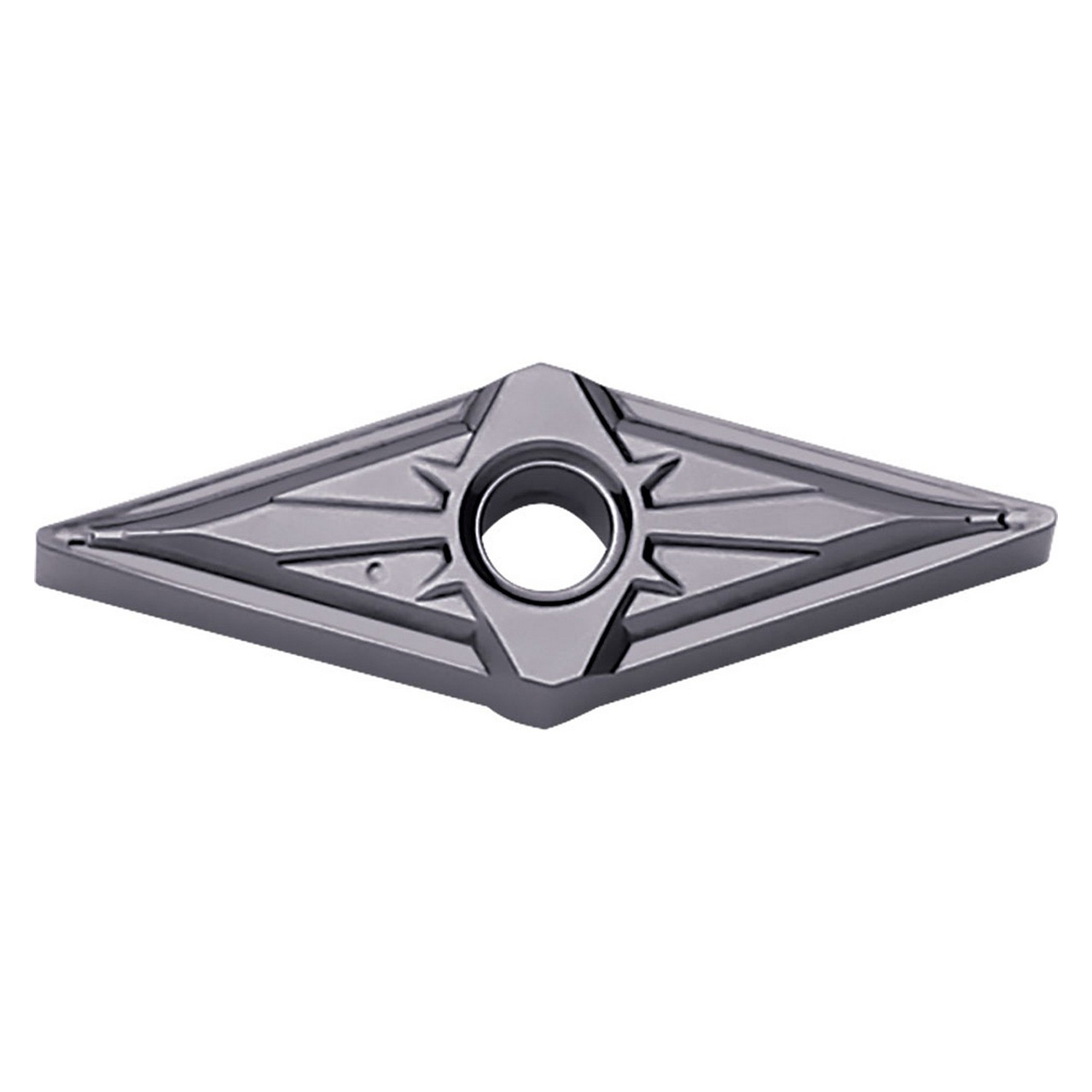

Kyocera Precision Tools TLM00380 | VNGG3305MFPSK PR1725 3/8" Circle Diameter x 3/16" Thickness PVD Coated Carbide Indexable Turning Insert

$15.17
Brand:
Kyocera Precision Tools
Insert Style:
VNGG
Insert Size:
3305
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
PR1725
SKU:
23245281
Weight:
0.24 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, facing, undercutting
  • Sharp edge/polished/minus tolerance corner radius with 4 cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications

Product Specifications
EDP NumberTLM00380
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationCopying | External Turning | Facing | Undercutting
ChipbreakerSK
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradePR1725
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size3305
MaterialCarbide
Number of Cutting Edges4
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
