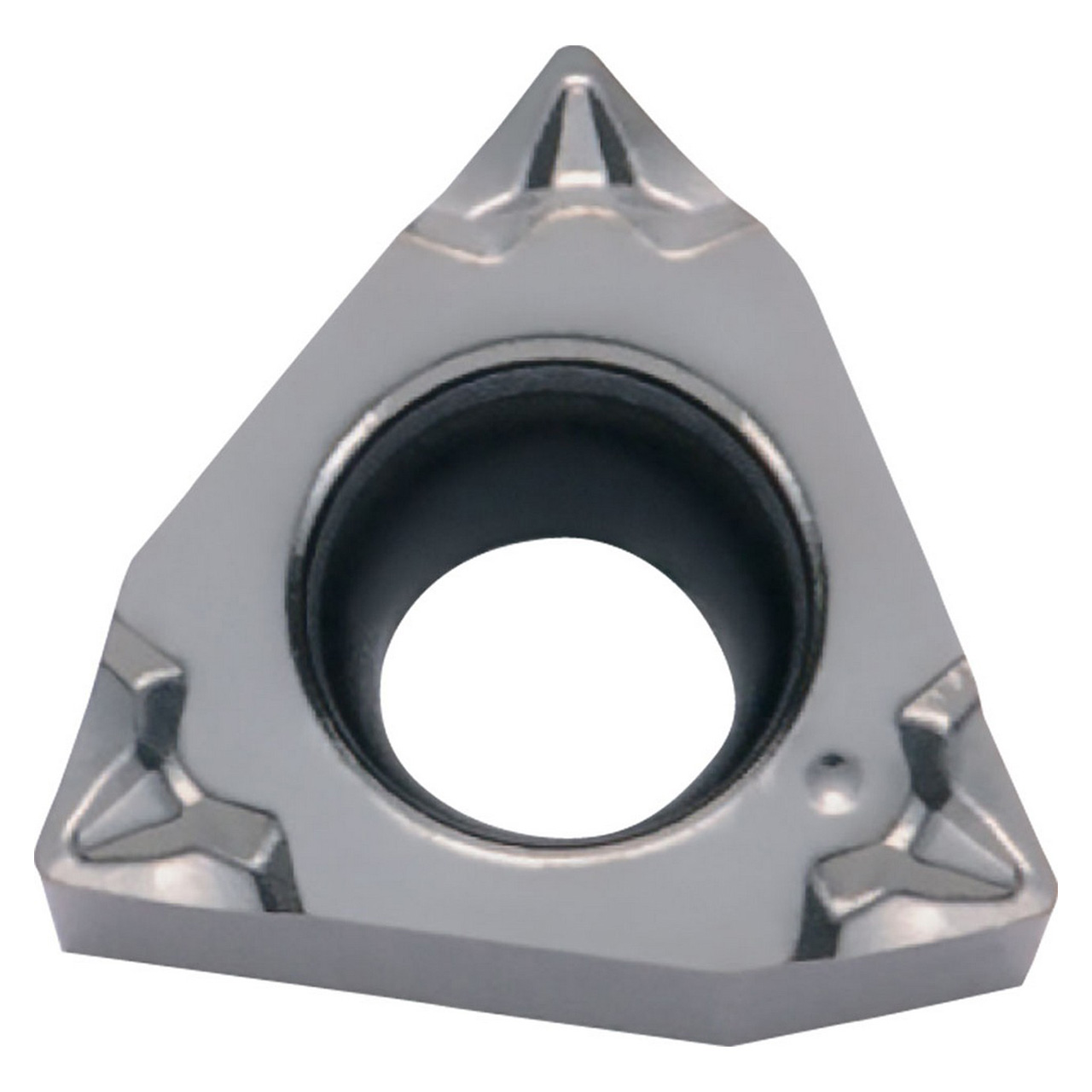

Features:
| EDP Number | TLM00516 |
| Inscribed Circle (Inch) | 3/16" |
| Inscribed Circle (mm) | 4.76mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |

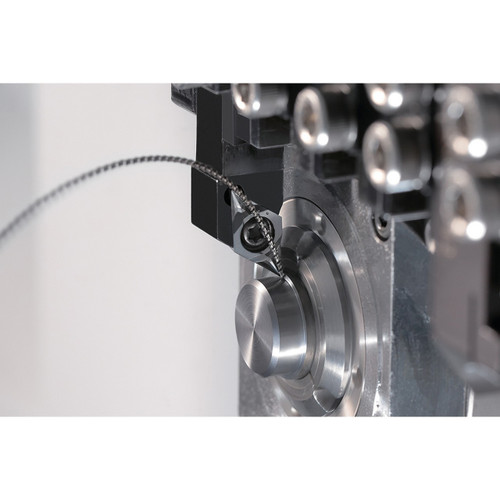

| Application | Boring | Internal Facing |
| Chipbreaker | PF |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Grade | PR1725 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Trigon |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 151502 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Light Interruption |
