Features:

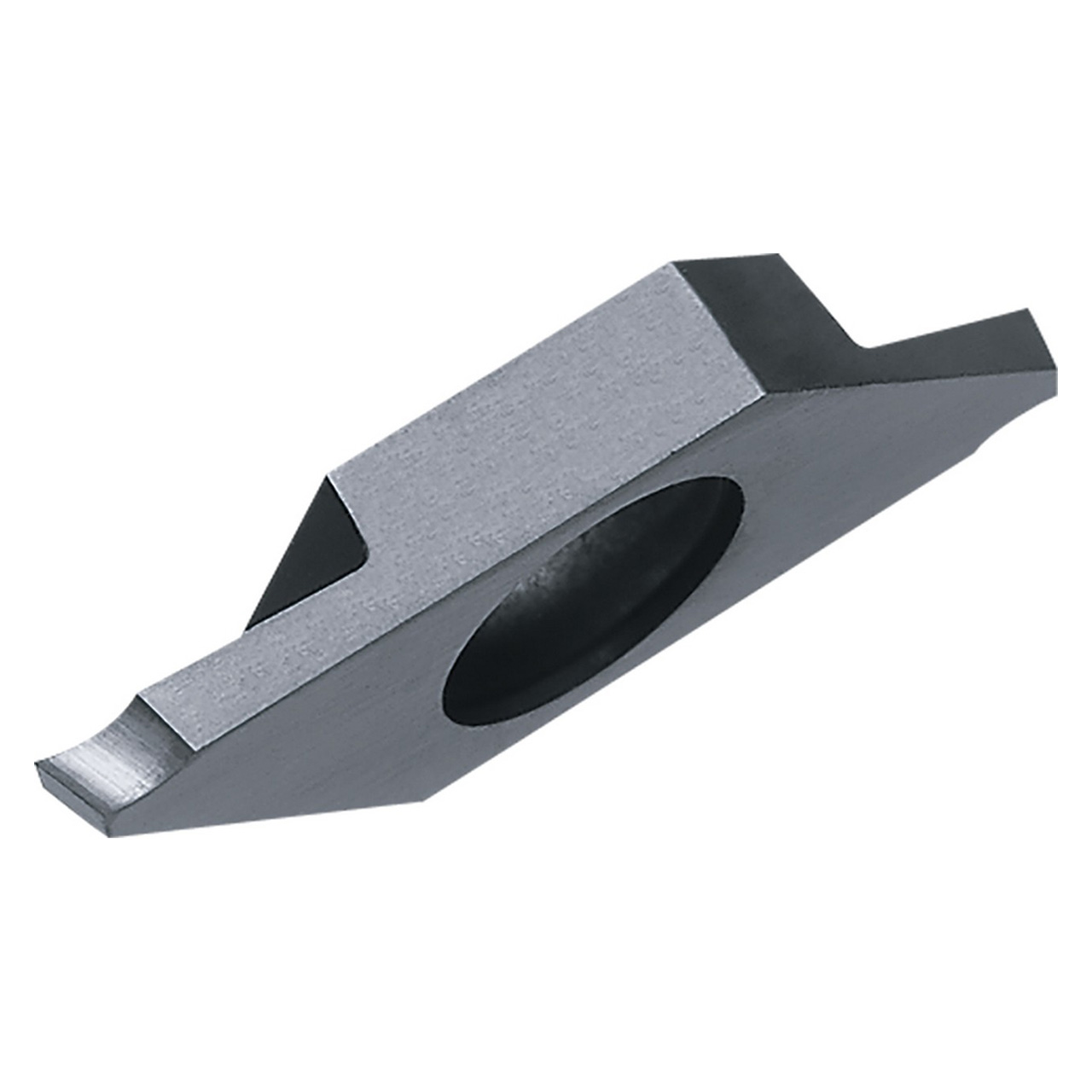

- Insert for Cut-Off for Small parts machining
- 16 Degree Right-Hand Lead Angle
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications
Product Specifications
| Tool Number | TLM40106 |
| Max Depth of Cut (Decimal Inch) | 0.1575" |
| Max Depth of Cut (mm) | 4.00mm |
| Cutting Width (Decimal Inch) | 0.0276" |
| Cutting Width (mm) | 0.70mm |
| Cutting Width Minimum (Decimal Inch) | 0.0276" |
| Cutting Width Minimum (mm) | 0.70mm |
| Cutting Width Maximum (Decimal Inch) | 0.0276" |
| Cutting Width Maximum (mm) | 0.70mm |
| Corner Radius (Inch) | 0.001" |
| Corner Radius (mm) | 0.03mm |
| Thickness (Inch) | 0.343" |
| Thickness (mm) | 8.70mm |
| Application | Cut-Off | Small Parts Machining |
| Chipbreaker | S |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1725 |
| Insert Size | 12 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=TKF"
Insert Size:
12
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.0276"
Cutting Width (mm):
0.70mm
Manufacturer's Grade:
PR1725
Series:
KTKF
