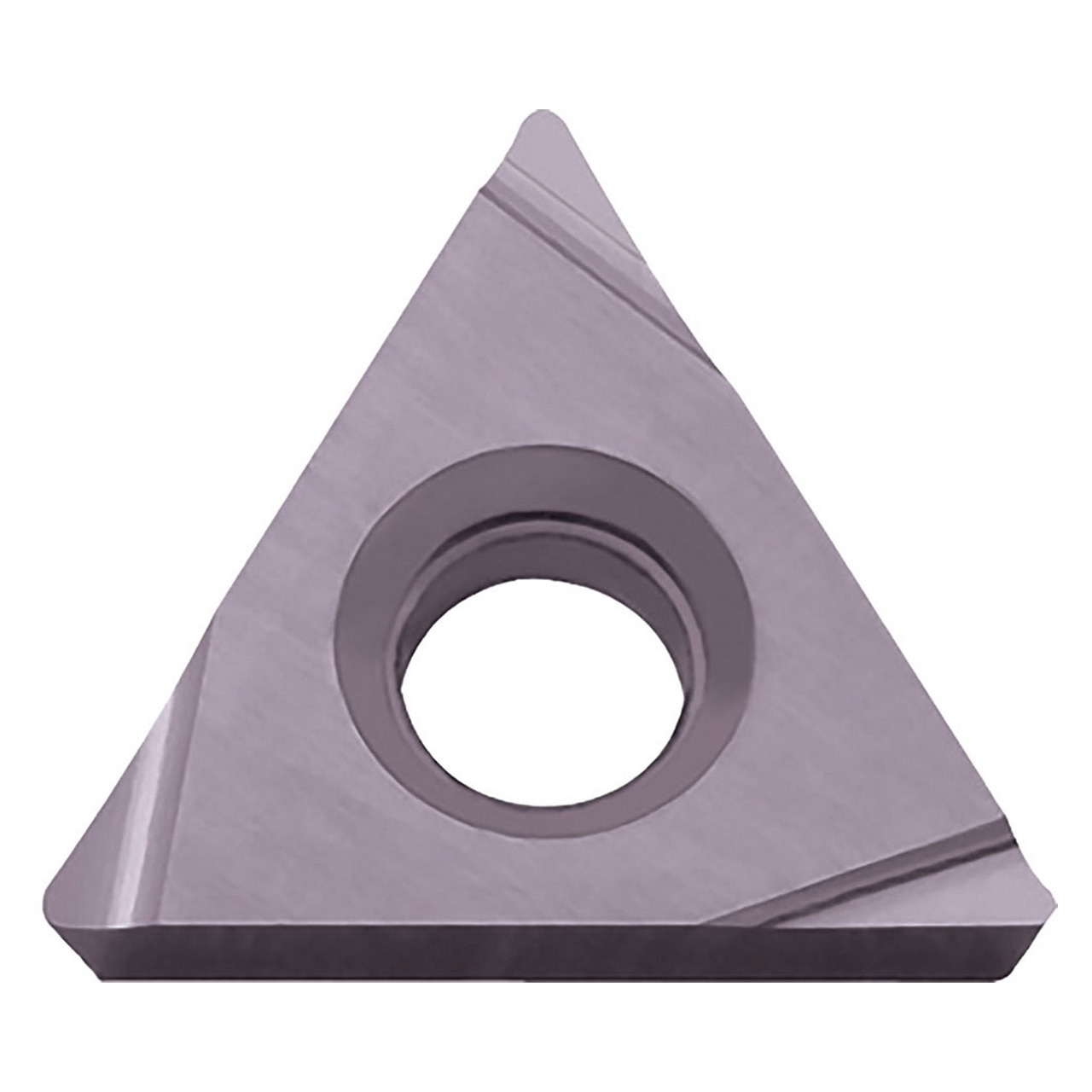

Kyocera Precision Tools TLN40182 | TPGH181505ML PR1705 7/32" Circle Diameter x 3/32" Thickness PVD Coated Carbide Indexable Turning Insert

$13.72
Brand:
Kyocera Precision Tools
Insert Style:
TPGH
Insert Size:
181505
Material:
Carbide;Inscribed Circle (Inch)=7/32"""
Inscribed Circle (Decimal Inch):
0.2189"
Inscribed Circle (mm):
5.56mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
PR1705
SKU:
23246008
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, boring, internal facing, copying, back boring
  • Minus tolerance corner radius with 3 cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for improved tool life in continuous machining for steel, electromagnetic soft iron and high precision machining of free-cutting steel

Product Specifications
EDP NumberTLN40182
Inscribed Circle (Inch)7/32"
Inscribed Circle (mm)5.56mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBack Boring | Boring | Copying | External Turning | Internal Facing
Coating ProcessPVD
Cutting RangeFinishing
HandLeft Hand
Insert GradePR1705
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size181505
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialFree-Cutting Steel (P)
Usage ClassificationContinuous
