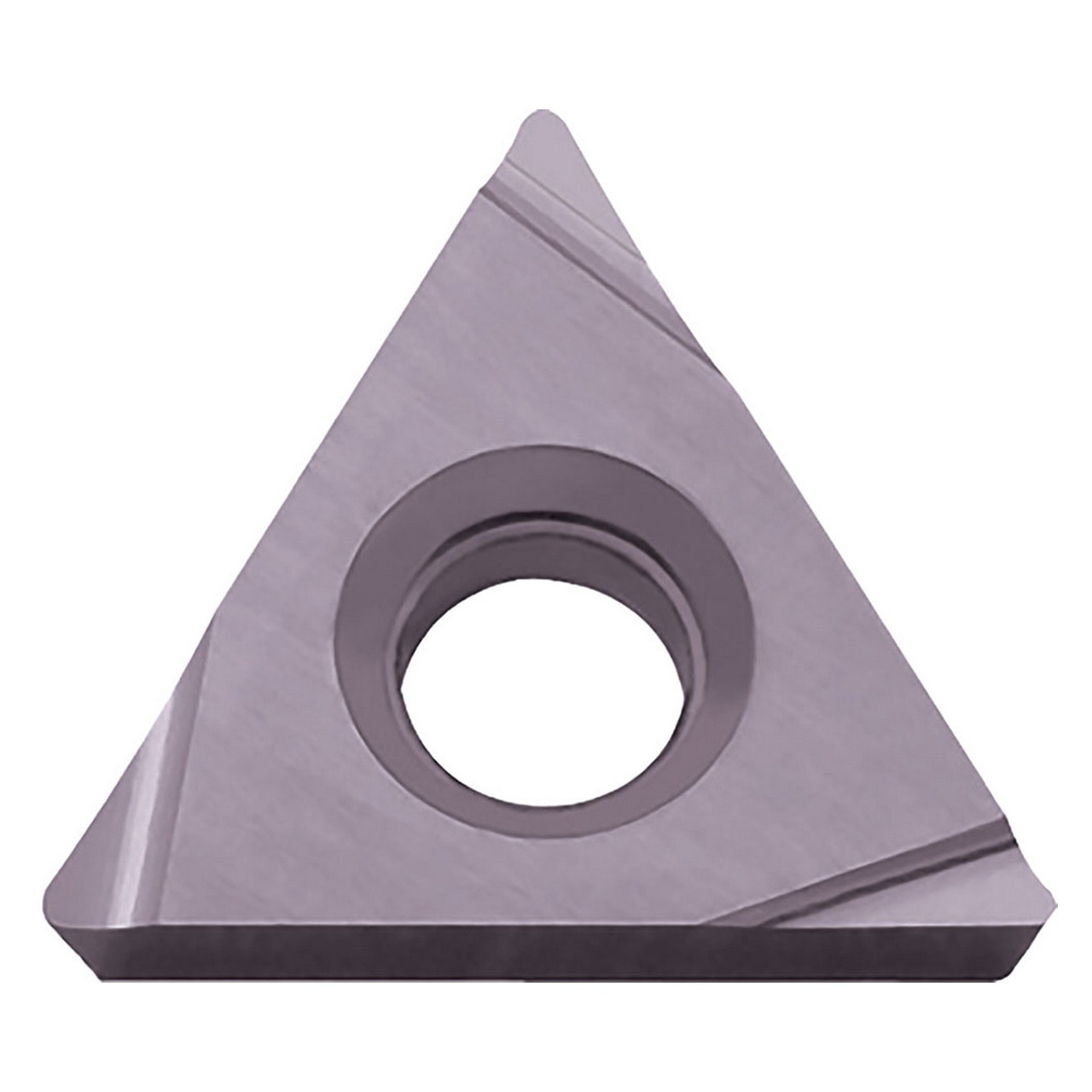

Features:
| EDP Number | TLN40183 |
| Inscribed Circle (Inch) | 7/32" |
| Inscribed Circle (mm) | 5.56mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |

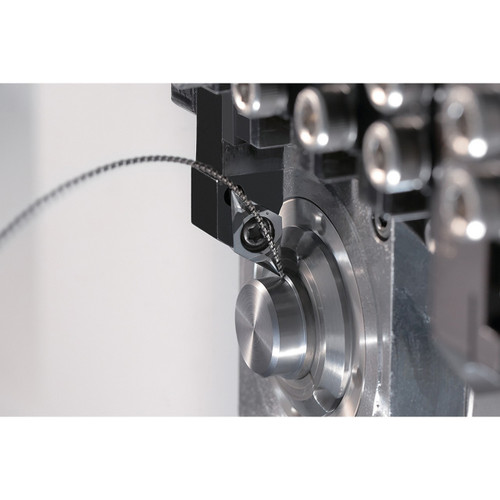

| Application | Back Boring | Boring | Copying | External Turning | Internal Facing |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Grade | PR1705 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 18151 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Free-Cutting Steel (P) |
| Usage Classification | Continuous |
