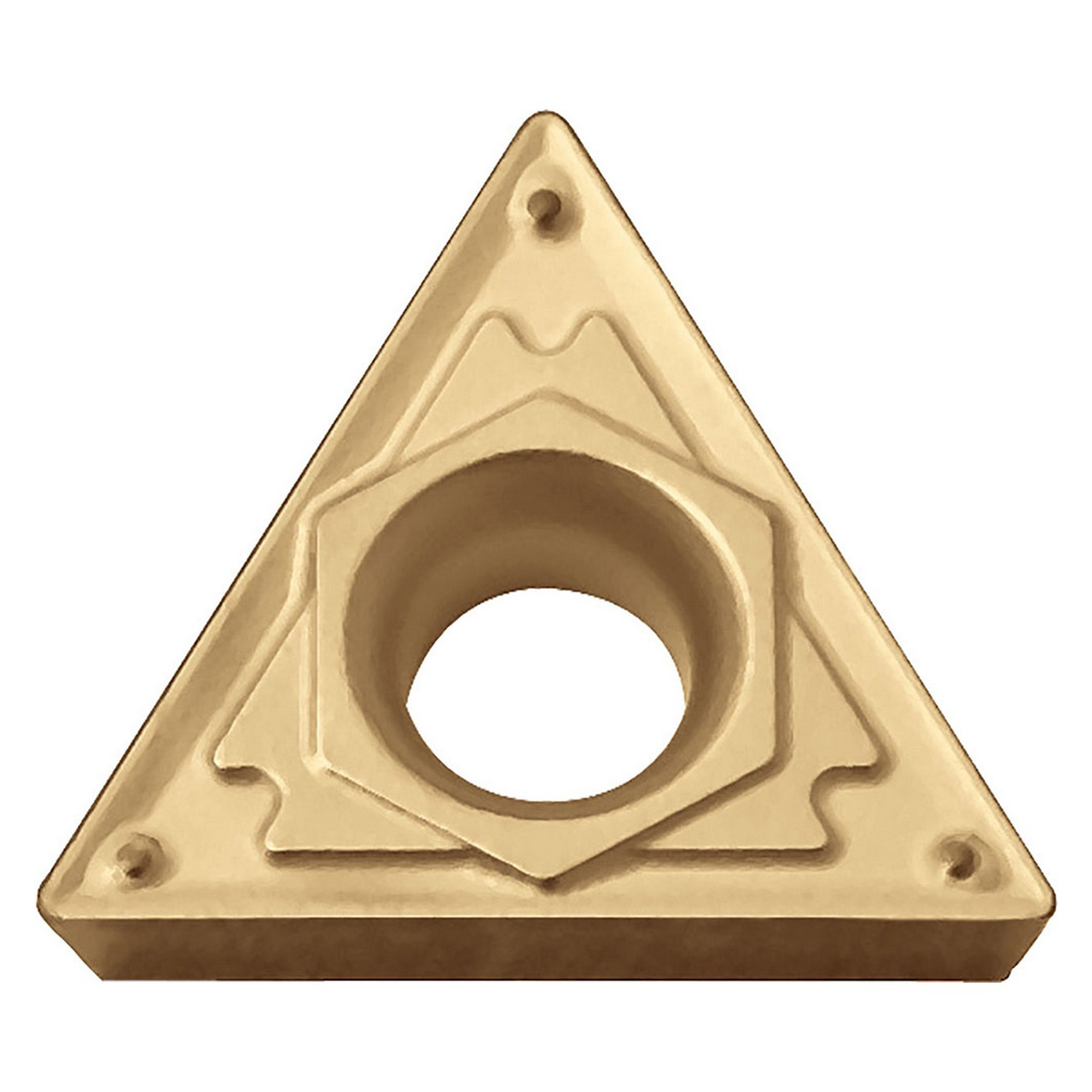

Kyocera Precision Tools TLP00283 | TCMT2152HQ PV730 1/4" Circle Diameter x 3/32" Thickness PVD Coated Cermet Indexable Turning Insert

$10.44
Brand:
Kyocera Precision Tools
Insert Style:
TCMT
Insert Size:
2152
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PV730
SKU:
23246304
Weight:
0.04 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning
  • 3 Cutting edges
  • Heavy interruption and finishing-medium of (P) carbon/alloy steel

Product Specifications
EDP NumberTLP00283
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationExternal Turning
ChipbreakerHQ
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradePV730
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size2152
MaterialCermet
Number of Cutting Edges3
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationHeavy Interruption

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
TCMT
Insert Size:
2152
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PV730
