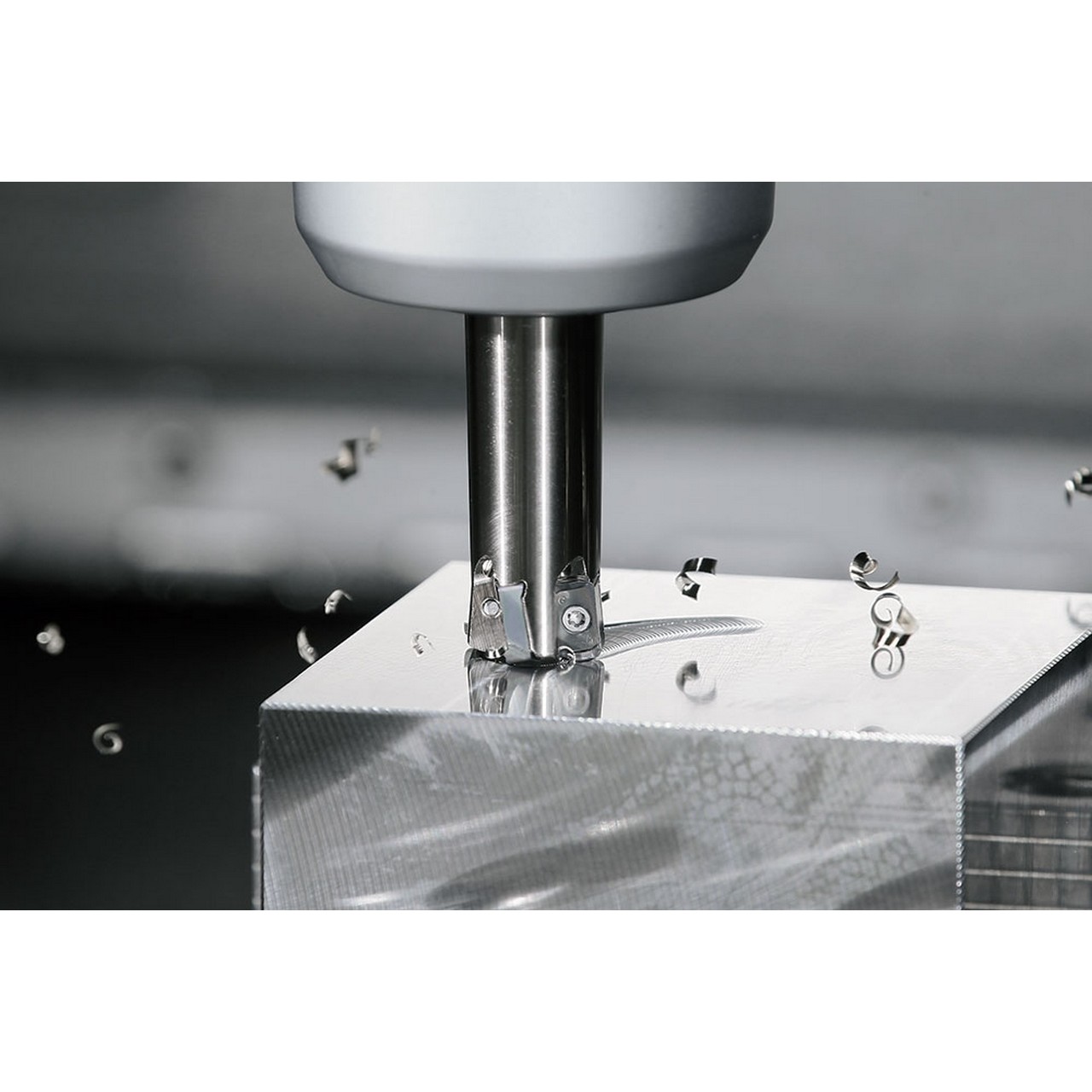

- Insert for high feed, facing, shouldering, slotting, pocketing, ramping, helical milling, plunging
- Honed edge/general purpose with 4 cutting edges
- High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
- Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel
Product Specifications
| EDP Number | TMA04200 |
| Insert Included Angle (Degree) | 90 Degree |
| [INSL] Insert Length (Decimal Inch) | 0.4685" |
| [INSL] Insert Length (mm) | 11.90mm |
| [RE] Corner Radius (Inch) | 0.039" |
| [RE] Corner Radius (mm) | 1.00mm |
| [S] Thickness (Inch) | 0.156" |
| [S] Thickness (mm) | 3.96mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Chipbreaker | ER-GM |
| Coating Process | CVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
030310
Material:
Carbide;Finish/Coating=CVD
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
3.96mm
